ABS - Wiring diagram
- Make
- Lancia
- Model
- Ypsilon Factory Service Manual
- Year
- 2003–2011
- Section
- Vehicle electronic systems › ABS - Wiring diagram
Wiring diagrams and electrical functionsABS - Wiring diagram

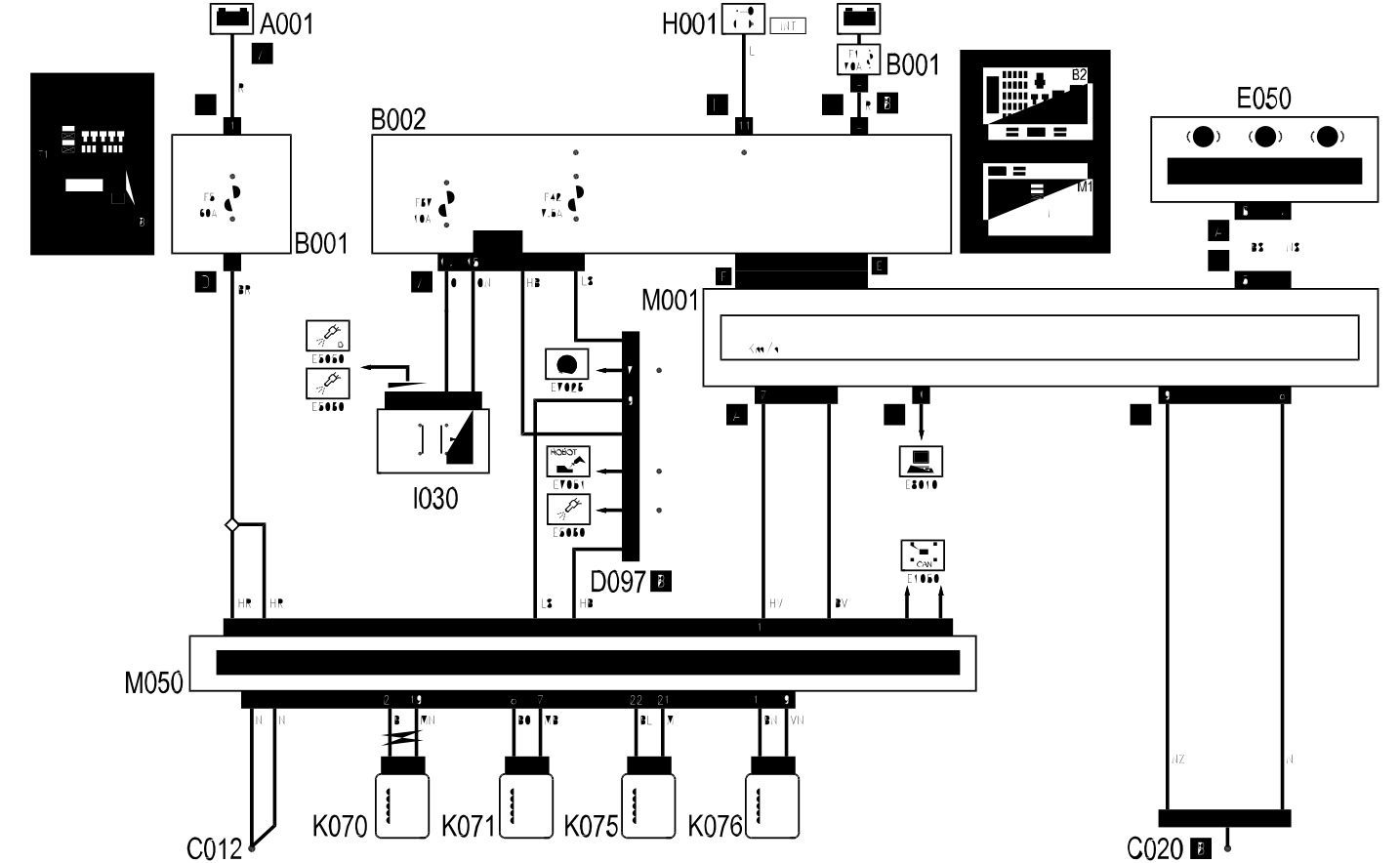

ABS - Wiring diagram
Wiring diagram
COMPONENTS
| Component code | Name | Assembly reference |
|---|---|---|
| A1 | Battery | 5530B |
| B1 | Engine compartment junction unit | 5505A |
| B2 | Junction unit under dashboard | 5505A |
| C12 | ABS front earth | |
| C20 | Passenger side dashboard earth | |
| D97 | Short circuiting coupling | |
| E50 | Instrument panel | 5560B |
| H1 | Ignition switch | 5520A |
| I30 | Brake pedal switch | 5550D |
| K70 | Left. front wheel sensor for ABS | 3340A |
| K71 | Right. front wheel sensor for ABS | 3340A |
| K75 | Left rear wheel sensor for ABS. | 3340A |
| K76 | Right rear wheel sensor for ABS. | 3340A |
| M1 | Body computer | 5505A |
| M50 | ABS control unit | 3340A |
