FOG LIGHTS - Wiring diagram

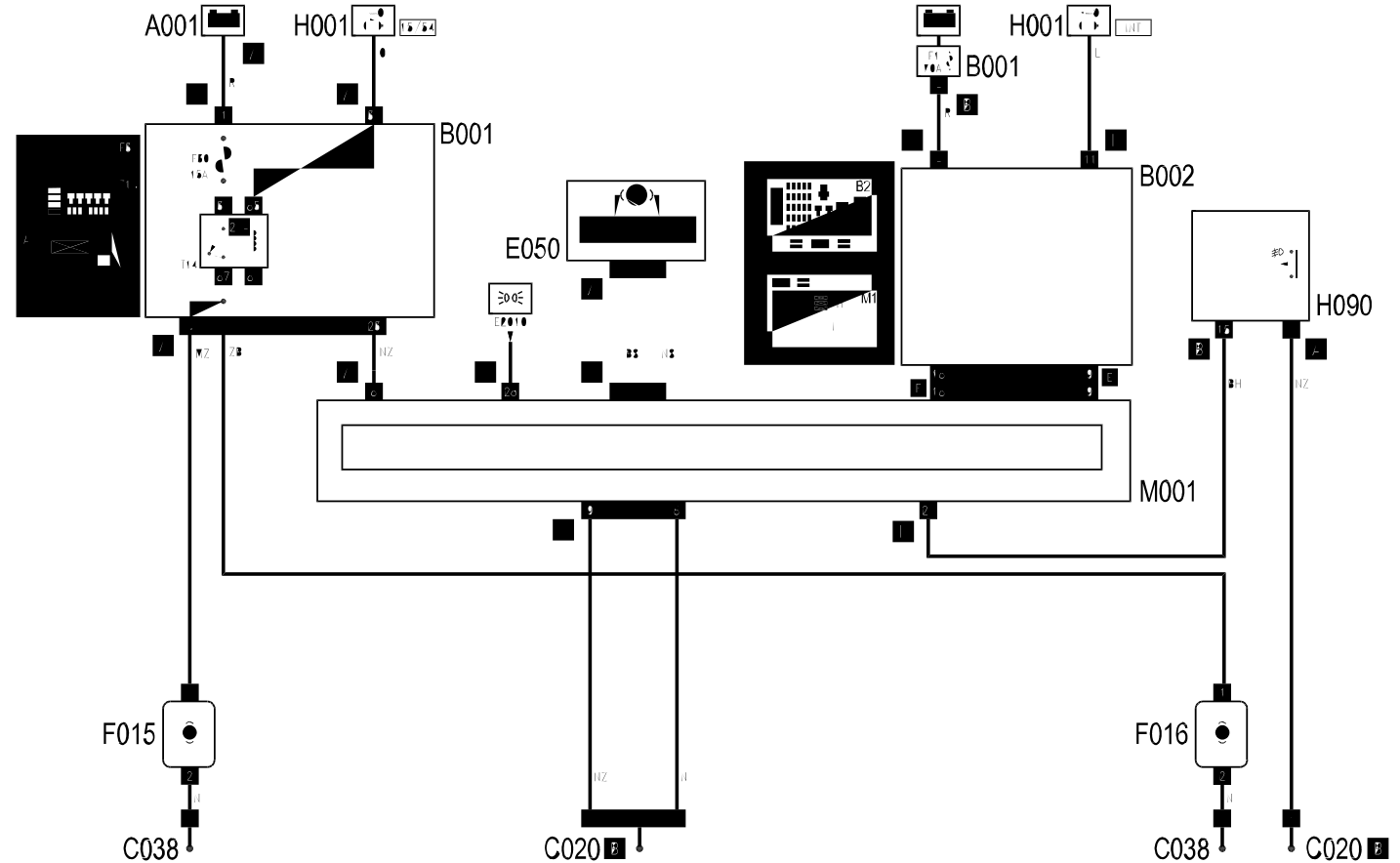

Wiring diagram
COMPONENTS
| Component code | Name | Assembly reference |
|---|---|---|
| A1 | Battery | 5530B |
| B1 | Engine compartment junction unit | 5505A |
| B2 | Junction unit under dashboard | 5505A |
| C20 | Passenger side dashboard earth | |
| C38 | Earth on tunnel | |
| E50 | Instrument panel | 5560B |
| F15 | Left fog lamp | 5540D |
| F16 | Right fog lamp | 5540D |
| H1 | Ignition switch | 5520A |
| H90 | Switch control unit | 5505A |
| M1 | Body computer | 5505A |
