Wiring diagrams and electrical functionsDIPPED HEADLAMPS - Wiring diagram
DIPPED HEADLAMPS - Wiring diagram

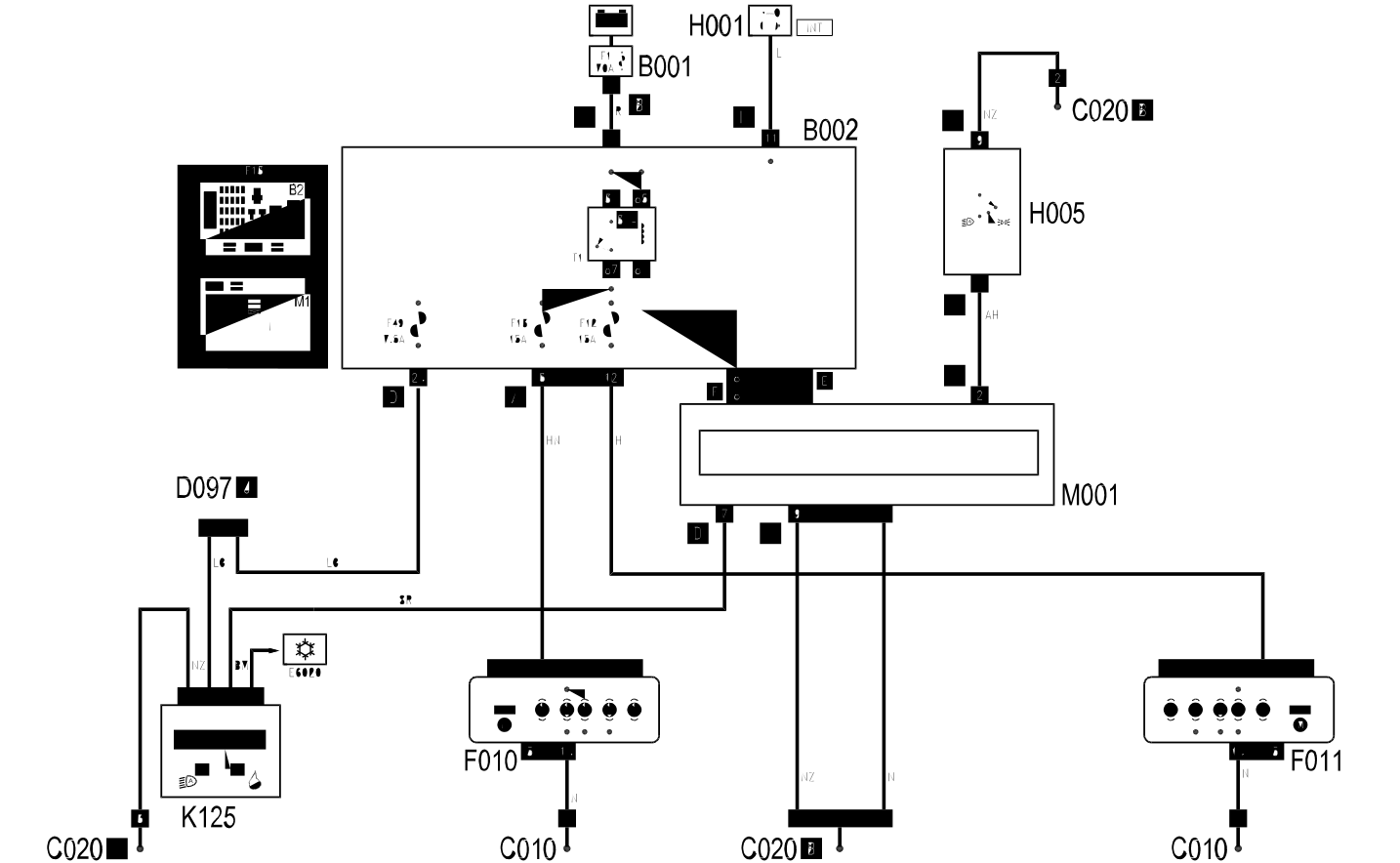

Wiring diagram
COMPONENTS
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | 5505A |
| B2 | Junction unit under dashboard | 5505A |
| C10 | Front left earth | |
| C20 | Passenger side dashboard earth | |
| D97 | Short circuiting coupling | |
| F10 | Left headlamp | 5540B |
| F11 | Right headlamp | 5540B |
| H1 | Ignition switch | 5520A |
| H5 | Steering column switch unit | 5550A |
| K125 | Rain, dusk and misting sensor | 5050B |
| K125 | Rain,dusk and misting sensor | 5050B |
| M1 | Body computer | 5505A |
