P70 Bose radio amplifier

Make

Lancia

Model

Ypsilon Factory Service Manual

Year

2003–2011

Section

Various consumers › P70 Bose radio amplifier

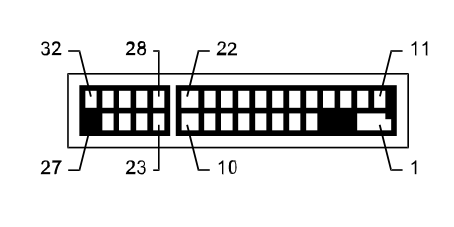

Connectors and pin-outsP70 Bose radio amplifier

P70 Bose radio amplifier

BOSE System

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HR		B98	1
2		N		C56	1
3	1.5	HV		P49	3
4	1.5	CB		P30	2
5	1.5	AG		P31	1
6		H		D20A	1
7		BN		D20B	2
8		NZ		D20B	8
9		CB		D20B	4
10		AR		D20B	6
11	1.5	HG		P49	1
12	1.5	BL		P49	2
15	1.5	HL		P49	4
16	1.5	CN		P30	1
17	1.5	AR		P31	2
19		RN		D20B	1
20		SN		D20B	9
21		CN		D20B	3
22		AG		D20B	5
26	1.5	NZ		D31	34
27	1.5	SN		D31	33
31	1.5	RN		D30	34
32	1.5	BN		D30	33
