Connectors and pin-outsP49 Subwoofer

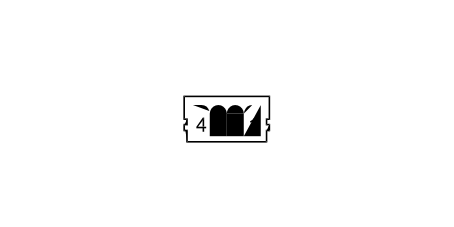

P49 Subwoofer

BOSE System

P49 Subwoofer

Wiring	Colour
25 REAR	MARRONE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1.5	HG		P70	11
2	1.5	BL		P70	12
3	1.5	HV		P70	3
4	1.5	HL		P70	15
