Lancia Ypsilon Factory Service Manual (2003-2011)21 · Connectors and pin-outs
21 · General

G10 Front courtesy light

Make
Lancia
Model
Ypsilon Factory Service Manual
Year
2003–2011
Section
Interior lights › G10 Front courtesy light
Connectors and pin-outsG10 Front courtesy light

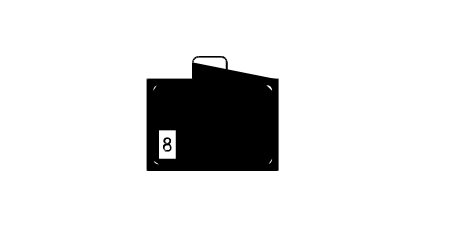

G10 Front courtesy light

G10 Front courtesy light
WiringColour
25 REARBIANCO
PinCableDestination
Sec.ColourNodeConnect.Pin
1RVM1E27
2BVM1E28
3ZM1E30
4AGM1E21
5BCM1E37
6LVB2D19
7NZC302
