Lancia Ypsilon Factory Service Manual (2003-2011)21 · Connectors and pin-outs
21 · General

C3 Battery earth on bodyshell

Make
Lancia
Model
Ypsilon Factory Service Manual
Year
2003–2011
Section
Earths › C3 Battery earth on bodyshell
Connectors and pin-outsC3 Battery earth on bodyshell

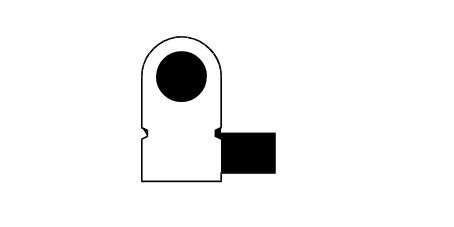

C3 Battery earth on bodyshell

1.3 JTD

C3 Battery earth on bodyshell
WiringColour
40 BATTERY NEGATIVE
PinCableDestination
Sec.ColourNodeConnect.Pin
35NXA1B
C2

1.2 8v, 1.2 16v, 1.4 16v

C3 Battery earth on bodyshell
WiringColour
40 BATTERY NEGATIVE
PinCableDestination
Sec.ColourNodeConnect.Pin
16NXA1B
C2
