I33 Switch on boot outer handle

Make
Lancia
Model
Ypsilon Factory Service Manual
Year
2003–2011
Section
Switches › I33 Switch on boot outer handle
Connectors and pin-outsI33 Switch on boot outer handle

I33 Switch on boot outer handle

I33A – Rear

I33 Switch on boot outer handle
WiringColour
25 REARBIANCO
PinCableDestination
Sec.ColourNodeConnect.Pin
1SVM1E35
2BH26
3NZC303
4NSI33B1

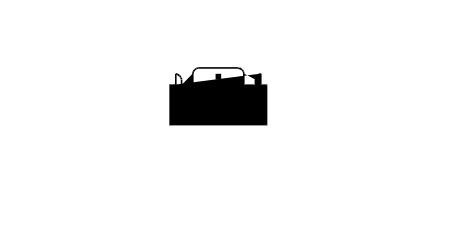

I33B – Rear

I33 Switch on boot outer handle
WiringColour
25 REARBIANCO
PinCableDestination
Sec.ColourNodeConnect.Pin
1NSI33A4
2GV27
