Rear exhaust SILENCER - R.R.

Operation 1076B20 · EXHAUST PIPES AND SILENCERS

2.4 JTD 20V

Removing

- Position the vehicle on a lift.

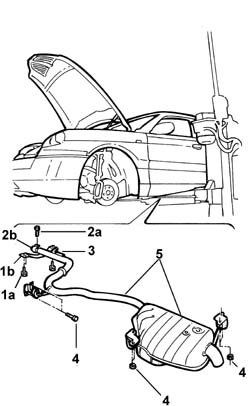

1. Undo the lower bolts fixing the rear bumper to gain access to the bolts fixing the rear mounting brackets.

1. Undo the fixing bolts (1a) and remove the reinforcement bracket (1b).

2. Undo the bolt (2a) fixing the metal collar (2b).

3. Release the pin from the rubber mounting on the bodyshell.

4. Undo the bolts and the nuts fixing the exhaust pipe brackets.

5. Remove the rear exhaust silencer.

Refitting

- Join the rear silencer to the exhaust pipe using the metal band.

- Tighten the bolt fixing the metal collar.

- Tighten the bolts fixing the mounting brackets to the bodyshell.

- Fit the pin for the silencer in the rubber mounting.

- Fit the reinforcement bracket and tighten the fixing bolts to torque.

- Tighten the lower bolts fixing the rear bumper.

- Remove the vehicle from the lift.

2.4 JTD 10V

Removing

- Position the vehicle on a lift.

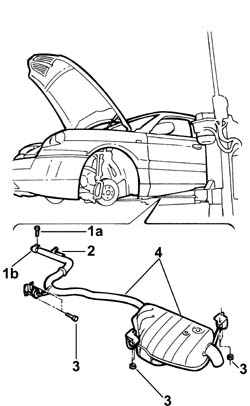

1. Undo the lower bolts fixing the rear bumper to gain access to the bolts fixing the rear mounting brackets.

1. Undo the bolt (1a) fixing the metal collar (1b).

2. Release the pin from the rubber mounting on the bodyshell.

3. Undo the bolts fixing the exhaust pipe brackets.

4. Remove the rear exhaust silencer.

Refitting

- Join the rear silencer to the exhaust pipe using the metal band.

- Tighten the bolt fixing the metal collar.

- Tighten the bolts fixing the mounting brackets to the bodyshell.

- Fit the pin for the silencer in the rubber mounting.

- Tighten the lower bolts fixing the rear bumper.

- Remove the vehicle from the lift.

2.0 TB, 2.4 20V

Removing

- Position the vehicle on a lift.

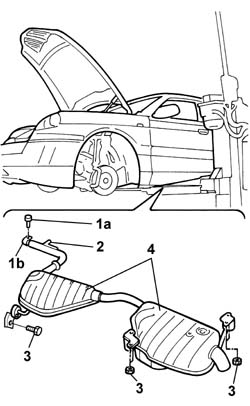

1. Undo the lower bolts fixing the rear bumper to gain access to the bolts fixing the rear mounting brackets.

1. Undo the bolt (1a) fixing the metal collar (1b).

2. Release the pin from the rubber mounting on the bodyshell.

3. Undo the bolts fixing the exhaust pipe brackets.

4. Remove the rear exhaust silencers.

Refitting

- Join the rear silencers to the exhaust pipe using the metal band.

- Tighten the bolt fixing the metal collar.

- Tighten the bolts fixing the mounting brackets to the bodyshell.

- Fit the pin for the silencer in the rubber mounting.

- Tighten the lower bolts fixing the rear bumper.

- Remove the vehicle from the lift.

3.0 V6, 3.2 V6

Removing

- Position the vehicle on a lift.

1. Undo the lower bolts fixing the rear bumper to gain access to the bolts fixing the rear mounting brackets.

1. Undo the bolt (1a) fixing the metal collar (1b).

2. Release the pin from the rubber mounting on the bodyshell.

3. Undo the bolts fixing the exhaust pipe brackets.

4. Remove the rear exhaust silencers.

Refitting

- Join the rear silencers to the exhaust pipe using the metal band.

- Tighten the bolt fixing the metal collar.

- Tighten the bolts fixing the mounting brackets to the bodyshell.

- Fit the pin for the silencer in the rubber mounting.

- Tighten the lower bolts fixing the rear bumper.

- Remove the vehicle from the lift.
