Lancia Thesis Factory Service Manual (2002-2009)08 · Engine
08 · Engine

CLUTCH pedal SWITCH - R.R.

Make
Lancia
Model
Thesis Factory Service Manual
Year
2002–2009
Section
Diesel fuel injection system › CLUTCH pedal SWITCH - R.R.
EngineCLUTCH pedal SWITCH - R.R.

CLUTCH pedal SWITCH - R.R.

Operation 1060G42 · DIESEL INJECTION PRESSURE PUMP ELECTRONIC CONTROL

2.4 JTD 20V

Removing

- Disconnect the negative battery terminal.

1. Undo the retaining bolts.

2. Remove the trim under the dashboard, driver's side.

CLUTCH pedal SWITCH - R.R.

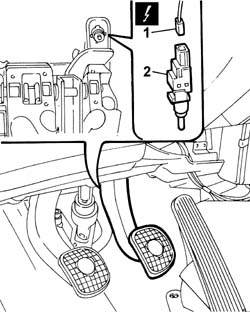

1. Disconnect the electrical connection for the clutch pedal switch.

DescriptionConnector
1Switch on clutch pedalI031

2. Undo and remove the switch from the clutch pedal.

CLUTCH pedal SWITCH - R.R.

Refitting

- Fit the switch on the clutch pedal.

- Connect the electrical connection.

DescriptionConnector
Switch on clutch pedalI031

- Fit the trim under the dashboard, driver's side.

- Connect the negative battery terminal.

2.4 JTD 10V

Removing

- Disconnect the negative battery terminal.

1. Undo the fixing bolts.

2. Remove the trim under the dashboard, driver's side.

CLUTCH pedal SWITCH - R.R.

1. Disconnect the electrical connection for the clutch pedal switch.

DescriptionConnector
1Switch on clutch pedalI031

2. Undo and remove the switch from the clutch pedal.

CLUTCH pedal SWITCH - R.R.

Refitting

- Fit the switch on the clutch pedal.

- Connect the electrical connection.

DescriptionConnector
Switch on clutch pedalI031

- Fit the trim under the dashboard, driver's side.

- Connect the negative battery terminal.
