SWITCH on BRAKE pedal - R.R.

Operation 1060G38 · DIESEL INJECTION PRESSURE PUMP ELECTRONIC CONTROL

2.4 JTD 20V

Removing

- Disconnect the negative battery terminal.

1. Undo the retaining bolts.

2. Remove the trim under the dashboard, driver's side.

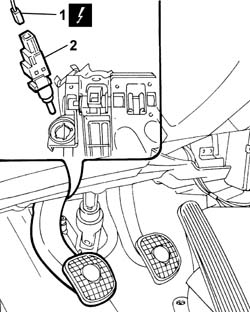

1. Disconnect the electrical connection for the brake pedal switch.

2. Undo and remove the switch from the brake pedal.

Refitting

- Position the brake pedal in the end of travel position.

- Fit the switch on the bracket rotating it about 60° in a clockwise direction until the attachment to the bracket can be heard.

- Release the brake pedal so that the brake servo push rod is in the rest position.

Check that the brake switch is correctly positioned (fully retracted); if it is not, the brake pedal could be operated which would cause the brakes to lock.

- Carry out a complete brake pedal stroke so that the switch beds into the housing.

- Check that there is clearance between the bracket on the pedal and the switch.

- Connect the electrical connection.

- Fit the trim under the dashboard, driver's side.

- Connect the negative battery terminal.

2.4 JTD 10V

Removing

- Disconnect the negative battery terminal.

1. Undo the fixing bolts.

2. Remove the trim under the dashboard, driver's side.

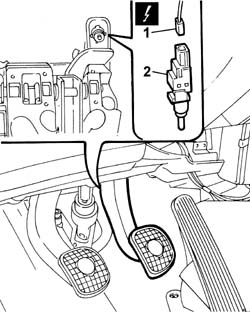

1. Disconnect the electrical connection for the brake pedal switch.

2. Undo and remove the switch from the brake pedal.

Refitting

- Position the brake pedal in the end of travel position.

- Fit the switch on the bracket rotating it about 60° in a clockwise direction until the attachment to the bracket can be heard.

- Release the brake pedal so that the brake servo push rod is in the rest position.

Check that the brake switch is correctly positioned (fully retracted); if it is not, the brake pedal could be operated which would cause the brakes to lock.

- Carry out a complete brake pedal stroke so that the switch beds into the housing.

- Check that there is clearance between the bracket on the pedal and the switch.

- Connect the electrical connection.

- Fit the trim under the dashboard, driver's side.

- Connect the negative battery terminal.
