BODY COMPUTER NODE (NBC)
SPECIFICATIONS
The Body Computer Node (NBC), a component which manages man functions micro-electronically, is connected to the dashboard electro-mechanical controlo unit (CPL); the combination of the two, known as the dashboard node (NPL) is located in the area under the dashboard to the left of the steering wheel.
The electronic section of the dashboard node carries out the following functions:
- receives and transmits information on B-CAN line (e.g.: diagnosis, warnings, commanda, data) and C-CAN lines (e.g. warnings, commands, data)
- receives and transmits information on a two-way serial line for the alarm, wipers, exterior lights
- connections with the dashboard, front and rear wiring
- allows an interface for fault diagnosis via the EOBD fixed connector
- is connected to the CPL to take supplies/signals and operate relays

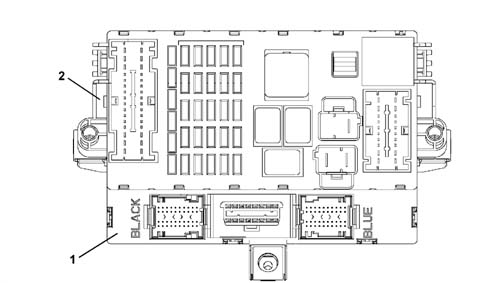

- 1 Body Computer Node (NBC)
- 2 Dashboard Control Unit (CPL)
- NBC+CPL = NPL

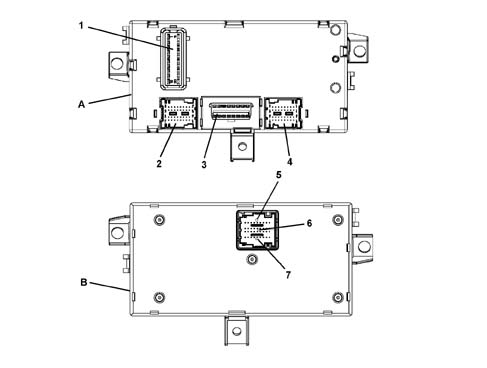

- A - Body Computer Node (NBC) front view
- B - Body Computer Node (NBC) rear view
- 1 M01F 20 PIN Connector
- 2 M01E 40 PIN Connector
- 3 M01G Connector EOBD diagnostic socket
- 4 M01A 40 PIN Connector
- 5 M01B Connector
- 6 M01C Connector
- 7 M01D Connector
BODY COMPUTER NODE NBC PIN OUT
| Conn. | Pin | Function |
|---|---|---|
| M01F | 1 | +30 from F-38 for fuel flpa locking/unlocking geared motor |
| M01F | 2 | Left/right brake lights control signal from CPL |
| M01F | 3 | Positive signal for switching on reversing lights from CPL |
| M01F | 4 | Not available |
| M01F | 5 | B-CAN to CPL (Connection with M01G 6, M01D 6, M01A 27, M01C 24) |
| M01F | 6 | Negative signal controlling heated rear windscreen relay coil (T11) |
| M01F | 7 | B-CAN A to CPL (Connection with M01G 14, M01D 5, M01A 26, M01C 25) |
| M01F | 8 | Negative signal controlling dipped headlamps relay coil (T01) |
| M01F | 9 | INT from ignition switch |
| M01F | 10 | Fuel flap locking geared motor |
| M01F | 11 | Fuel flap unlocking geared motor |
| M01F | 12 | Negative signal controlling parking from Exterior Lights Switch |
| M01F | 13 | INT from F-37 for NQS/CAF (Connection with M01A 10, M01B 31) |
| M01F | 14 | Negative signal controlling services relay coil 2 (T13) |
| M01F | 15 | INT for F-51 (connection with M01F 9) |
| M01F | 16 | Not available |
| M01F | 17 | +30 from F-39 for NIM, anti-theft alarm, EOBD diagnostic socket (connection with M01A 11, M01A 34, M01C 26, M01G 16, M01E 27, M01E 39) |
| M01F | 18 | +30 for BC (immobilizer, CAN, side lights, rear fog lamps, brake lights SBMT driver, +lights driver) |
| M01F | 19 | +30 from F-53 for direction indicators/hazard warning lights, NQS |
| M01F | 20 | Fuel flap locking geared motor earth |
| Conn. | Pin | Function |
|---|---|---|
| M01E | 1 | Front driver's door open negative signal (connection with M01E 8) |
| M01E | 2 | Left side direction indicator activation (connection with M01A 2) |
| M01E | 3 | Right rear direction indicator activation |
| M01E | 4 | Fuel level signal from tank |
| M01E | 5 | Left rear side light activation |
| M01E | 6 | Right rear side light activation |
| M01E | 7 | A-bus serial line at rear cable for CPP, NIM (connection with M01A 25) |
| M01E | 8 | Negative signal from NA switch signalling front driver's door open (connection with M01E 1) |
| M01E | 9 | Left no. plate light activation |
| M01E | 10 | Sun roof closing command negative signal |
| M01E | 11 | Front passenger door open negative signal (connection with M01E 25) |
| M01E | 12 | Left rear direction indicator activation |
| M01E | 13 | Right side direction indicator activation (connection with M01A 22) |
| M01E | 14 | Negative signal from NA switch (preparation) |
| M01E | 15 | Fuel level signal from tank (negative) |
| M01E | 16 | Negative signal from NA switch signalling left rear door open |
| M01E | 17 | Front passenger door (locking) NA motor bar signal |
| M01E | 18 | K line for rear zone - NPB, SCS, CPP (connection with M01G 13) |
| M01E | 19 | Negative signal from button (preparation) |
| M01E | 20 | Right rear fog lamp activation |
| M01E | 21 | Centre rear courtesy light timed/dimmed negative control (20W max) |
| M01E | 22 | Right rear brake light activation |
| M01E | 23 | +30 SBMT for courtesy light under driver's visor (connection with M01E 33, M01C 15, M01C 16) |
| M01E | 24 | Front driver's door (locking) NA motor bar signal |
| M01E | 25 | Negative signal from NA switch signalling front passenger door open (connection with M01E 11) |
| M01E | 26 | Negative signal from NA switch signalling right rear door open |
| M01E | 27 | +30 from F-39 for NIM |
| M01E | 28 | Positive analogue signal for left/right spot light in centre rear courtesy light |
| M01E | 29 | Positive signal from button |
| M01E | 30 | Timed negative cotnrol with battery discharged for left spot light in centre rear courtesy light (10W max) |
| M01E | 31 | Left rear fog lamp activation |
| M01E | 32 | Left brake light activation |
| M01E | 33 | +30 SBMT for courtesy light under passenger's visor (connection with M01E 23, M01C 15, M01C 16) |
| M01E | 34 | Front driver's door (unlocking) NC motor bar signal |
| M01E | 35 | Front passenger door (unlocking) NC motor bar signal |
| M01E | 36 | Negative signal from NA switch signalling boot open |
| M01E | 37 | Timed negative cotnrol with battery discharged for right spot light in centre rear courtesy light (10W max) |
| M01E | 38 | Right no. plate light activation |
| M01E | 39 | +30 from F-39 for Cell Phone Preparation |
| M01E | 40 | Activation of current socket fixed light dependent on side lights (connection with M01C 18) |
| Conn. | Pin | Function |
|---|---|---|
| M01G | 1 | K line for NFR (connection with M01A 16) |
| M01G | 2 | Not available |
| M01G | 3 | K line for Air Bag (connection with M01C 12) |
| M01G | 4 | Power earth for diagnostic equipment (connection with M01D 9) |
| M01G | 5 | Signal earth for diagnostic equipment (connection with M01D 8) |
| M01G | 6 | B-CAN B for diagnosis |
| M01G | 7 | K line for NCM/NCA (connection with M01A 20) |
| M01G | 8 | Not available |
| M01G | 9 | K line for dashboard zone - CSG, CAF (connection with M01C 11) |
| M01G | 10 | Not available |
| M01G | 11 | Not available |
| M01G | 12 | K line for front zone - CRS, NAC, NBA (connection with M01A 35) |
| M01G | 13 | K line for rear zone - NPB, SCS, CPP (connection with M01E 18) |
| M01G | 14 | B-CAN A for diagnosis |
| M01G | 15 | Not available |
| M01G | 16 | +30 EOBD diagnostic socket from F-39 (connection with M01F 17) |
| Conn. | Pin | Function |
|---|---|---|
| M01A | 1 | Positive signal for engaging reverse gear (connection with M01F 3) |
| M01A | 2 | Left side direction indicator repeater activation (connection with M01E 2) |
| M01A | 3 | Screening (immobilizer aerial) |
| M01A | 4 | Immobilizer aerial |
| M01A | 5 | Immobilizer aerial |
| M01A | 6 | Serial interface ISO5 serial line for Rear Lights Control Units |
| M01A | 7 | Speedometer signal input (VSO) from NFR (connection with M01A 17) |
| M01A | 8 | Negative signal controlling fog lights relay coil (connection with M01C 22) |
| M01A | 9 | Negative signal controlling main beam headlamps relay coil |
| M01A | 10 | INT from F-37 for CAF (connection with M01F 13) |
| M01A | 11 | +30 from F-39 for CPP |
| M01A | 12 | Negative signal controlling general relay coil (preparation) |
| M01A | 13 | Positive signal from steering column switch unit for headlamp washer/wish-wash signal |
| M01A | 14 | Negative signal controlling headlamp washer relay coil |
| M01A | 15 | Earth for speedometer impulse generator on gearbox (connection with M01D 8) |
| M01A | 16 | K line for NFR (connection with M01G 1) |
| M01A | 17 | VSO signal for Power Assisted Steering Control Unit (connection with M01A 7) |
| M01A | 18 | Negative signal from switch signalling insufficient brake fluid level (NC) |
| M01A | 19 | Alternator D+ signal |
| M01A | 20 | K line for NCM/NCA dignosis (connection with M01G7) |
| M01A | 21 | Aerial for RF receiver (earth) |
| M01A | 22 | Right side direction indicator repeater activation (connection with M01E 13) |
| M01A | 23 | Signal from left/right front brake pad wear sensor |
| M01A | 24 | Negative signal from NC switch signalling bonnet open |
| M01A | 25 | A-bus serial line at front cable for CSA, CTC (connection with M01E 7) |
| M01A | 26 | B-CAN A for NBS |
| M01A | 27 | B-CAN B for NBS |
| M01A | 28 | Repetition of speedometer signal for CAF/SCS |
| M01A | 29 | Serial interface ISO5 for immobilizer/NCM dialogue (recovery) |
| M01A | 30 | Right front side light activation |
| M01A | 31 | Aerial for RF receiver |
| M01A | 32 | C-CAN L from engine compartment (connection with M01A 36) |
| M01A | 33 | C-CAN H from engine compartment (connection with M01A 37) |
| M01A | 34 | +30 from F-39 for anti-theft alarm (connection with M01F 17) |
| M01A | 35 | K line for front zone - CRS, NAC, NBA (connection with M01G 12) |
| M01A | 36 | C-CAN L to NAS (connection with M01A 32) |
| M01A | 37 | C-CAN H to NAS (connection with M01A 33) |
| M01A | 38 | Left front direction indicator activation |
| M01A | 39 | Right front direction indicator activation |
| M01A | 40 | Left front side light activation |
| Conn. | Pin | Function |
|---|---|---|
| M01D | 1 | Negative signal controlling fog lights (connection with M01C 20) |
| M01D | 2 | Negative signal from button (preparation) |
| M01D | 3 | +30 from F-53 for NQS (connection with M01F 19) |
| M01D | 4 | Negative signal controlling dipped headlamps from outside lights switch |
| M01D | 5 | B-CAN A for NQS |
| M01D | 6 | B-CAN B from NSQ |
| M01D | 7 | Negative signal controlling right direction indicator/parking light from steering column switch unit |
| M01D | 8 | NBC earth signal (connection with M01B 36, M01C 19, M01G5, M01A 15, M01A 3) |
| M01D | 9 | NBC power earth (connection with M01C 10, M01G 4) |
| M01C | 10 | NBC power earth (connection with M01D 9) |
| M01C | 11 | K line for dashboard zone - CSG, CAF (connection with M01G 9) |
| M01C | 12 | K line for Air Bag (connection with M01G 3) |
| M01C | 13 | LED negative control (preparation) |
| M01C | 14 | Deterrent LED positive control |
| M01C | 15 | +30 SBMT (preparation, connection with M01E 23, M01E 33, M01C 16) |
| M01C | 16 | +30 SBMT for glove compartment light (connection with M01E 23, M01E 33, M01C 15) |
| M01C | 17 | Negative signal from NA switch on clutch pedal |
| M01C | 18 | Activation of cigar lighter/ashtray fixed ring nut dependent on side lights (connection with M01E 40) |
| M01C | 19 | NBC signal earth (connection with M01D 8) |
| M01C | 20 | Negative signal controlling fog lights (connection with M01D 1) |
| M01C | 21 | LED positive control (preparation) |
| M01C | 22 | Fog lights on LED signal negative control (connection with M01A 8) |
| M01C | 23 | Repetition of speedometer signal for CTA (connection with M01A 28) |
| M01C | 24 | B-CAN B for NCL/NVO |
| M01C | 25 | B-CAN A for NCL/NVO |
| M01C | 26 | +30 from F-39 (prepartion, connection with M01F 17) |
| M01C | 27 | INT/A from F-31 CPL |
| M01B | 28 | Negative signal controlling side lights from exterior lights switch |
| M01B | 29 | Hazard warning lights on LED positive control |
| M01B | 30 | Negative signal controlling left direction indicator/parking light from steering column switch unit |
| M01B | 31 | INT from F-37 for NQS |
| M01B | 32 | Negative signal from button (preparation) |
| M01B | 33 | Negative signal controlling main beam headlamps or flasher from steering column switch unit |
| M01B | 34 | Negative signal from hazard warning lights control |
| M01B | 35 | Negative signal from rear fog lamps control button |
| M01B | 36 | Spare signal earth (connection with M01D 8) |
FUNCTIONS MANAGED BY THE BODY COMPUTER NODE (NBC)
The table below summarizes the functions carried out by the Body Computer Node
| No. | FUNCTION |
|---|---|
| F001 | Immobilizer |
| F002 | Fuel level signalling |
| F003 | Timed control of "key 2 discharge" relay |
| F006 | Alternator D+ signal |
| F008 | Signalling of insufficient battery voltage |
| F016 | Engine coolant temperature and overheating warning light |
| F018 | Engine rpm signalling |
| F019 | Signalling of minimum engine oil pressure |
| F020 | Speedometer signal |
| F021 | Consumption signal |
| F023 | Milometer signal |
| F024 | Heater plugs signal |
| F025 | Cruise Control warning light management |
| F026 | Management of adaptive cruie control B-CAN interface and display |
| F027 | Side lights with warning light |
| F030 | No. plate lights |
| F032 | Parking lights |
| F033 | Management of rear fog lamp ECE48/01 with warning light |
| F037 | Control of fog lights relay with warning light |
| F040 | Network key status (INT) |
| F042 | Management of dipped headlamps relay |
| F043 | Maintenance of dipped headlamps with main beam headlamps |
| F044 | Activation of side lights and dipped headlamps by dusk sensor |
| F047 | Control of main beam headlamps with warning light |
| F048 | Follow me home |
| F049 | Blinker with locking/unlocking of doors by remote control |
| F050 | Blinker with alarm |
| F051 | Direction indicators with warning lights |
| F052 | Hazard warning lights with warning light |
| F055 | Acoustic signalling of direction indicators / hazard warning lights |
| F057 | Left/right brake lights |
| F061 | Reversing lights and reversing signal |
| F073 | +lights lighting (not adjustable) |
| F078 | Management of courtesy lights and front and rear spot lights |
| F080 | US volumetric protection of passenger compartment (which can be excluded) |
| F087 | Alarm system |
| F091 | Signalling of doors, boot open |
| F092 | Management of doors/boot and fuel flap locking/unlocking |
| F094 | Automatic closing of doors, boot, fuel flap above 30 Km/h or when parking (activated by customer). |
| F100 | Signalling of bonnet open |
| F111 | Closing/opening of windows by remote control |
| F114 | Rain sensor acquisition |
| F117 | Closing of sun roof by remote control |
| F122 | Automatic defrosting at low outside temperatures |
| F126 | Timed management of defrosting |
| F132 | Management of ABS warning light and EBD failure signalling |
| F133 | Control of activation of ASR/TC and warning light |
| F134 | Management of VDC warning light |
| F135 | Acquisition and management of tyre inflation pressure radiofrequency signal |
| F136 | Brake pad wear state |
| F144 | Gateway for communication between C-CAN and B-CAN |
| F145 | Insufficient brake fluid level signal |
| F146 | Headlamp washer |
| F150 | 2 speed windscreen wiper, intermittent, anti-panic, intelligent windscreen washer |
| F162 | Clock |
| F177 | System status monitoring |
| F184 | Vehicle speed signal hardware repetition |
| F192 | Outside temperature management |
| F196 | Automatic/robotized transmission failure signal |
| F197 | Signalling of automatic transmission fluid overheating |
| F198 | Acoustic signal for reverse gear and gearbox safety position |
| F200 | Signalling of gears and status from automatic/robotized transmission |
| F202 | Automatic recirculation from windscreen washer control (wish wash) |
| F204 | Trim level configuration check |
| F224 | Auto-configuration for Instrument Panel menù |
| F228 | Vehicle access management |
| F229 | Activation of alarm siren in market mode |
| F231 | Transponder reading |
| F232 | Engine starting enablement from immobilizer |
| F233 | Activation of alarm by tilt sensor |
| F235 | Headlamp flasher |
| F237 | Management of climate control compressor engagement |
| F242 | Remote control receiver |
| F247 | Management of controls by steering column switch unit |
| F248 | Automatic deactivation of Parking Brake |
| F252 | Management of Electric Handbrake (EPB) |
| F253 | Management of controls by exterior lights switch (CLE) |
| F262 | Water in diesel filter sensor |
| F263 | Electric child-proof locks |
| F312 | Dead-lock engagement/release |
| F314 | CID recognition in garage position |
| F316 | Starter motor inhibition |
| F318 | CID recognition |
| F322 | Vehicle protection system signals |
| F326 | Management of steering lock |
Parts & tools for this job Staging For 2002 Lancia Thesis
- TOOLTrim removal tool kitSearch: trim removal tool kit
- PARTTouch-up paintSearch: Lancia touch up paint
- PARTPanel clip assortmentSearch: Lancia panel clips assortment
Links open Amazon search results in a new tab. As an Amazon Associate I earn from qualifying purchases.
