A020 Starter motor

Make

Lancia

Model

Thesis Factory Service Manual

Year

2002–2009

Section

Starting - recharging › A020 Starter motor

Connectors and pin-outsA020 Starter motor

A020 Starter motor

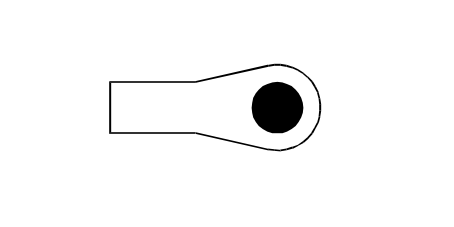

A020A – Recharging

3.2 V6

Wiring	Colour
45 RECHARGING

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin

3.0 V6

Wiring	Colour
45 RECHARGING

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	35	R		A005B	1

2.4 JTD 20V

Wiring	Colour
45 RECHARGING

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	35	R		A005B	1

2.4 20V

Wiring	Colour
45 RECHARGING

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	35	R		A005B	1

2.0 TB

Wiring	Colour
45 RECHARGING

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	35	R		A005B	1

2.4 JTD 10V

Wiring	Colour
45 RECHARGING

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	35	R		A005B	1

2.4 JTD 20V

Wiring	Colour
45 RECHARGING

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	35	R		A005B	1

2.4 20V

Wiring	Colour
50 ENGINE

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	200,5	RN		D004	10

A020B – Recharging

2.4 20V

Wiring	Colour
45 RECHARGING

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	16	R		A010B	1

2.0 TB

Wiring	Colour
45 RECHARGING

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	16	R		A010B	1

2.4 JTD 10V

Wiring	Colour
45 RECHARGING

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	16	R		A010B	1

3.0 V6

Wiring	Colour
45 RECHARGING

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	16	R		A010B	1

A020C – Engine

2.4 JTD 10V

Wiring	Colour
50 ENGINE

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	100,5	M		D004	10

2.0 TB

Wiring	Colour
50 ENGINE

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	100,5	M		D004	10

2.4 JTD 20V

Wiring	Colour
50 ENGINE

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	200,5	M		D004	F
