A010 Alternator
- Make
- Lancia
- Model
- Thesis Factory Service Manual
- Year
- 2002–2009
- Section
- Starting - recharging › A010 Alternator
Connectors and pin-outsA010 Alternator
A010 Alternator
A010A – Engine
| Wiring | Colour |
|---|---|
| 50 ENGINE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Diameter | Colour | Node | Connector | Pin | |
| D | 0,75 | H | D004 | 8 | |
| Wiring | Colour |
|---|---|
| 50 ENGINE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Diameter | Colour | Node | Connector | Pin | |
| 1 | 0,5 | HG | D004 | 8 | |
| Wiring | Colour |
|---|---|
| 50 ENGINE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Diameter | Colour | Node | Connector | Pin | |
| 1 | 0,5 | HG | D004 | H | |
| Wiring | Colour |
|---|---|
| 50 ENGINE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Diameter | Colour | Node | Connector | Pin | |
| 1 | 0,5 | HG | D004 | 8 | |

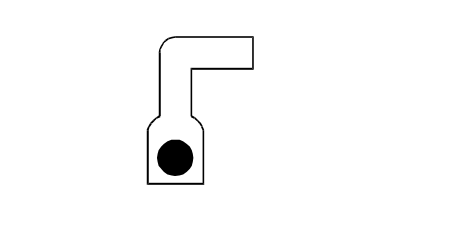

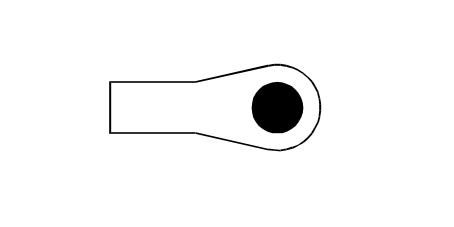

A010B – Recharging
| Wiring | Colour |
|---|---|
| 45 RECHARGING |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Diameter | Colour | Node | Connector | Pin | |
| 1 | 16 | R | A020B | 1 | |
| Wiring | Colour |
|---|---|
| 45 RECHARGING |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Diameter | Colour | Node | Connector | Pin | |
| 1 | 16 | R | A020B | 1 | |
| Wiring | Colour |
|---|---|
| 45 RECHARGING |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Diameter | Colour | Node | Connector | Pin | |
| 1 | 16 | R | A020B | 1 | |
| Wiring | Colour |
|---|---|
| 45 RECHARGING |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Diameter | Colour | Node | Connector | Pin | |
| 1 | 16 | R | A020B | 1 | |
