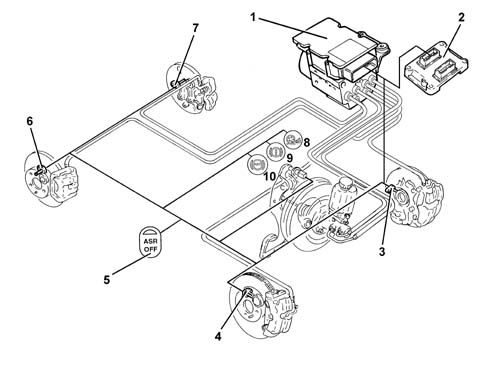

Introduction A.S.R. CONTROL/REGULATION DEVICES

• 1 ABS/ASR control unit
• 2 Engine management control unit
• 3 Left front sensor
• 4 Right front sensor
• 5 ASR off button
• 6 Right rear sensor
• 7 Left rear sensor
• 8 ASR warning light
• 9 EBD failure (9 and 10 on simultaneously)
• 10 ABS warning light
