SUBASSEMBLY GRAPHIC INDEX

2.0 16V JTD, 2.2 16V JTD

1, Exhaust pipe front section

2, Anti-Particle Filter FAP

3, Exhaust pipe rear section

INTRODUCTION

The engine exhaust gases flow, via the manifold and the turbocharger, to the catalytic converter to which the FAP Anti-Particle Filter is secured and then to the rear silencer.

179.04.00.DF._.10.198.__.76.___._.__.X.01.H.___.tif

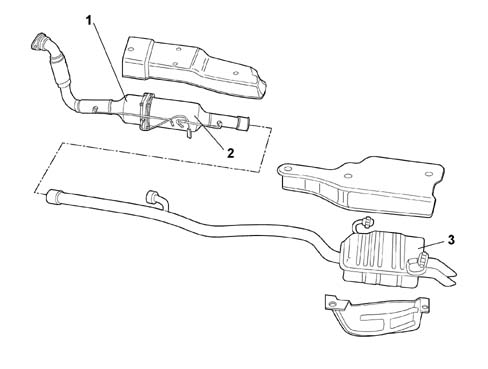

1, Front section of exhaust pipe 2, Particle Filter FAP 3, Rear section of exhaust pipe
