DESCRIPTION

2.0 16V JTD, 2.2 16V JTD

The exhaust pipe is divded into two sections:

- front section;

- rear section.

The front section of the exhaust pipe (1) includes a flexible section (2) fitted to limit the transmission of engine vibrations, the catalytic converter (3) and the FAP anti-particle filter (4).

Op. 1080B EXHAUST EMISSION CONTROL SYSTEM

The rear section consists of a pipe (5) connected to the rear silencer (6).

Special protections (7) and (8) limit heat radiation to the body.

The various pipe components are supported by means of flexible mountings and supports (9) secured to the underbody.

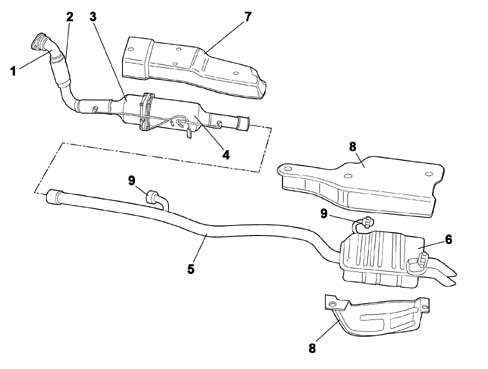

Exhaust pipe assembly

179.04.00.DF._.10.198.__.76.___._.__.X.02.H.___.tif
