PRESSURE PUMP PULLEY - R R

Operation 1060E30 · DIESEL PRESSURE PUMP

2.0 16V JTD

Removing

- Position the vehicle on a lift.

Op. 4450B04 RIGHT FRONT WHEEL R R

Op. 7055B91 RIGHT FRONT WHEEL ARCH LINER - R.R.

Op. 7055B54 UNDER-ENGINE GUARD - R R

Op. 5530B56 BATTERY DRIP TRAY COVER - R.R.

Op. 5010B18 CLIMATE CONTROL UNIT AIR INTAKE - R.R.

Op. 5050B34 WINDSCREEN WIPER ARM/S COMPLETE WITH BLADE - R+R

Op. 7055A18 L/H OR R/H SIDE RUBBING STRIP DECORATIVE SEAL - R+R

Op. 5050B38 WINDSCREEN WIPER ASSEMBLY - R+R OR REPAIR

See in Op. 1008C10

See in Op. 1092G10

See in Op. 1024B54

See in Op. 1092A10

See in Op. 1032D12

See in Op. 1008A46

See in Op. 1032B10

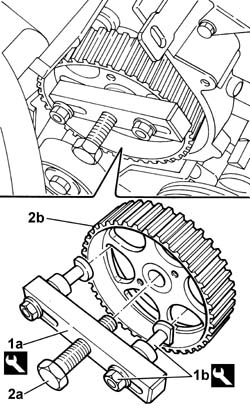

1. Undo the fixing nut (1b) using the tool (1a).

1. Fit the extractor complete with pins fastening it to the pulley.

The extractor should be used without reaction element in order to be able to fit it.

2. Acting on the hexagonal part of the reaction pin (2a), tighten the pressure pump pulley (2b) until it is extracted.

Refitting

- Fit the pressure pump pulley.

- Using the tool for stopping the rotation, tighten the nut fixing the pressure pump drive pulley to torque.

See in Op. 1032B10

See in Op. 1008A46

See in Op. 1032D12

See in Op. 1092A10

See in Op. 1024B54

See in Op. 1092G10

See in Op. 1008C10

Op. 5050B38 WINDSCREEN WIPER ASSEMBLY - R+R OR REPAIR

Op. 7055A18 L/H OR R/H SIDE RUBBING STRIP DECORATIVE SEAL - R+R

Op. 5050B34 WINDSCREEN WIPER ARM/S COMPLETE WITH BLADE - R+R

Op. 5010B18 CLIMATE CONTROL UNIT AIR INTAKE - R.R.

Op. 5530B56 BATTERY DRIP TRAY COVER - R.R.

Op. 7055B54 UNDER-ENGINE GUARD - R R

Op. 7055B91 RIGHT FRONT WHEEL ARCH LINER - R.R.

Op. 4450B04 RIGHT FRONT WHEEL R R

- Remove the vehicle from the lift.

2.2 16V JTD

Removing

- Position the vehicle on a lift.

Op. 4450B04 RIGHT FRONT WHEEL R R

Op. 7055B91 RIGHT FRONT WHEEL ARCH LINER - R.R.

Op. 7055B54 UNDER-ENGINE GUARD - R R

Op. 5530B56 BATTERY DRIP TRAY COVER - R.R.

Op. 5010B18 CLIMATE CONTROL UNIT AIR INTAKE - R.R.

Op. 5050B34 WINDSCREEN WIPER ARM/S COMPLETE WITH BLADE - R+R

Op. 7055A18 L/H OR R/H SIDE RUBBING STRIP DECORATIVE SEAL - R+R

Op. 5050B38 WINDSCREEN WIPER ASSEMBLY - R+R OR REPAIR

See in Op. 1008C10

See in Op. 1092G10

See in Op. 1024B54

See in Op. 1092A10

See in Op. 1032D12

See in Op. 1008A46

See in Op. 1032B10

1. Undo the fixing nut (1b) using the tool (1a).

1. Fit the extractor complete with pins fastening it to the pulley.

The extractor should be used without reaction element in order to be able to fit it.

2. Acting on the hexagonal part of the reaction pin (2a), tighten the pressure pump pulley (2b) until it is extracted.

Refitting

- Fit the pressure pump pulley.

- Using the tool for stopping the rotation, tighten the nut fixing the pressure pump drive pulley to torque.

See in Op. 1032B10

See in Op. 1008A46

See in Op. 1032D12

See in Op. 1092A10

See in Op. 1024B54

See in Op. 1092G10

See in Op. 1008C10

Op. 5050B38 WINDSCREEN WIPER ASSEMBLY - R+R OR REPAIR

Op. 7055A18 L/H OR R/H SIDE RUBBING STRIP DECORATIVE SEAL - R+R

Op. 5050B34 WINDSCREEN WIPER ARM/S COMPLETE WITH BLADE - R+R

Op. 5010B18 CLIMATE CONTROL UNIT AIR INTAKE - R.R.

Op. 5530B56 BATTERY DRIP TRAY COVER - R.R.

Op. 7055B54 UNDER-ENGINE GUARD - R R

Op. 7055B91 RIGHT FRONT WHEEL ARCH LINER - R.R.

Op. 4450B04 RIGHT FRONT WHEEL R R

- Remove the vehicle from the lift.
