Fiat Ulysse Factory Service Manual (2002-2010)08 · Engine
08 · Engine

Supplementary pressure pump - r r

Make
Fiat
Model
Ulysse Factory Service Manual
Year
2002–2010
Section
Diesel injection system › Supplementary pressure pump - r r
EngineSupplementary pressure pump - r r

SUPPLEMENTARY PRESSURE PUMP - R R

Operation 1060E40 · DIESEL PRESSURE PUMP

2.0 16V JTD

Removing

- Position the vehicle on the lift.

Op. 4450B04 RIGHT FRONT WHEEL R R

Op. 7055B91 RIGHT FRONT WHEEL ARCH LINER - R.R.

Op. 7055B54 UNDER-ENGINE GUARD - R R

Op. 5530B56 BATTERY DRIP TRAY COVER - R.R.

Op. 5010B18 CLIMATE CONTROL UNIT AIR INTAKE - R.R.

Op. 5050B34 WINDSCREEN WIPER ARM/S COMPLETE WITH BLADE - R+R

Op. 7055A18 L/H OR R/H SIDE RUBBING STRIP DECORATIVE SEAL - R+R

Op. 5050B38 WINDSCREEN WIPER ASSEMBLY - R+R OR REPAIR

See in Op. 1080C10

See in Op. 1092G10

See in Op. 1024B54

See in Op. 1092A10

See in Op. 1032D12

See in Op. 1008A46

See in Op. 1032B10

See in Op. 1060E30

See in Op. 1060E10

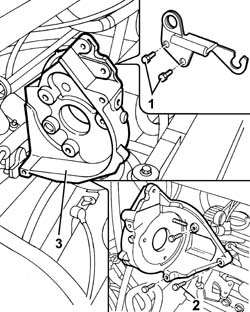

1. Undo the bolt fixing the bracket to the mounting and remove it.

2. Undo the bolts securing the mount to the cylinder block/crankcase.

3. Remove the pressure pump support.

SUPPLEMENTARY PRESSURE PUMP - R R

Refitting

- Fit the pressure pump support.

- Tighten the bolts securing the mount to the cylinder block/crankcase to the recommended torque.

- Tighten the bolts fixing the bracket.

See in Op. 1060E10

See in Op. 1060E30

See in Op. 1032B10

See in Op. 1008A46

See in Op. 1032D12

See in Op. 1092A10

See in Op. 1024B54

See in Op. 1092G10

See in Op. 1008C10

Op. 5050B38 WINDSCREEN WIPER ASSEMBLY - R+R OR REPAIR

Op. 7055A18 L/H OR R/H SIDE RUBBING STRIP DECORATIVE SEAL - R+R

Op. 5050B34 WINDSCREEN WIPER ARM/S COMPLETE WITH BLADE - R+R

Op. 5010B18 CLIMATE CONTROL UNIT AIR INTAKE - R.R.

Op. 5530B56 BATTERY DRIP TRAY COVER - R.R.

Op. 7055B54 UNDER-ENGINE GUARD - R R

Op. 7055B91 RIGHT FRONT WHEEL ARCH LINER - R.R.

Op. 4450B04 RIGHT FRONT WHEEL R R

- Remove the vehicle from the lift.

2.2 16V JTD

Removing

- Position the vehicle on the lift.

Op. 4450B04 RIGHT FRONT WHEEL R R

Op. 7055B91 RIGHT FRONT WHEEL ARCH LINER - R.R.

Op. 7055B54 UNDER-ENGINE GUARD - R R

Op. 5530B56 BATTERY DRIP TRAY COVER - R.R.

Op. 5010B18 CLIMATE CONTROL UNIT AIR INTAKE - R.R.

Op. 5050B34 WINDSCREEN WIPER ARM/S COMPLETE WITH BLADE - R+R

Op. 7055A18 L/H OR R/H SIDE RUBBING STRIP DECORATIVE SEAL - R+R

Op. 5050B38 WINDSCREEN WIPER ASSEMBLY - R+R OR REPAIR

See in Op. 1008C10

See in Op. 1092G10

See in Op. 1024B54

See in Op. 1092A10

See in Op. 1032D12

See in Op. 1008A46

See in Op. 1032B10

See in Op. 1060E30

See in Op. 1060E10

1. Undo the bolt fixing the bracket to the mounting and remove it.

2. Undo the bolts securing the mount to the cylinder block/crankcase.

3. Remove the pressure pump support.

SUPPLEMENTARY PRESSURE PUMP - R R

Refitting

- Fit the pressure pump support.

- Tighten the bolts securing the mount to the cylinder block/crankcase to the recommended torque.

- Tighten the bolts fixing the bracket.

See in Op. 1060E10

See in Op. 1060E30

See in Op. 1032B10

See in Op. 1008A46

See in Op. 1032D12

See in Op. 1092A10

See in Op. 1024B54

See in Op. 1092G10

See in Op. 1008C10

Op. 5050B38 WINDSCREEN WIPER ASSEMBLY - R+R OR REPAIR

Op. 7055A18 L/H OR R/H SIDE RUBBING STRIP DECORATIVE SEAL - R+R

Op. 5050B34 WINDSCREEN WIPER ARM/S COMPLETE WITH BLADE - R+R

Op. 5010B18 CLIMATE CONTROL UNIT AIR INTAKE - R.R.

Op. 5530B56 BATTERY DRIP TRAY COVER - R.R.

Op. 7055B54 UNDER-ENGINE GUARD - R R

Op. 7055B91 RIGHT FRONT WHEEL ARCH LINER - R.R.

Op. 4450B04 RIGHT FRONT WHEEL R R

- Remove the vehicle from the lift.
