I129 courtesy lights disabling switch

Make: Fiat
Model: Ulysse Factory Service Manual
Year: 2002–2010
Section: Switches › I129 courtesy lights disabling switch

‹ Prev I122 centre and rear sun roof switch Next › I130 volumetric sensors disabling switch

Connectors and pin-outsI129 courtesy lights disabling switch

I129 COURTESY LIGHTS DISABLING SWITCH

Wiring	Colour
See 71 SUN ROOF BRIDGE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A2	0,35	V - 3035		See D042B COURTESY LIGHT COUPLING (SUN ROOF BRIDGE)	3
A3		GV - M306B	X	See D042B COURTESY LIGHT COUPLING (SUN ROOF BRIDGE)	8
				See G010A FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	3
				See G011 PASSENGER AREA FRONT COURTESY LIGHT	3
				See G012 PASSENGER AREA REAR COURTESY LIGHT	3
				See H061 FRONT SUN ROOF SWITCH	5
				See I110 DOOR CLOSING SWITCH	3
				See I120 CENTRE SUN ROOF SWITCH	5
				See I121 REAR SUN ROOF SWITCH	5
				See I122 CENTRE AND REAR SUN ROOF SWITCH	5
				See I129 COURTESY LIGHTS DISABLING SWITCH	B1
				See I133 LEFT SLIDING SIDE DOOR OPENING SWITCH ON COURTESY LIGHT	3
				See I134 RIGHT SLIDING SIDE DOOR OPENING SWITCH ON COURTESY LIGHT	3
				See N036 FRONT SUN ROOF MOTOR	1
				See N155 CENTRE SUN ROOF MOTOR	1
				See N155 CENTRE SUN ROOF MOTOR	8
				See N156 REAR SUN ROOF MOTOR	7
				See N156 REAR SUN ROOF MOTOR	1
				See P065 ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR	1
B1	0,35	GV - M306A	X	See D042B COURTESY LIGHT COUPLING (SUN ROOF BRIDGE)	8
				See G010A FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	3
				See G011 PASSENGER AREA FRONT COURTESY LIGHT	3
				See G012 PASSENGER AREA REAR COURTESY LIGHT	3
				See H061 FRONT SUN ROOF SWITCH	5
				See I110 DOOR CLOSING SWITCH	3
				See I120 CENTRE SUN ROOF SWITCH	5
				See I121 REAR SUN ROOF SWITCH	5
				See I122 CENTRE AND REAR SUN ROOF SWITCH	5
				See I129 COURTESY LIGHTS DISABLING SWITCH	A3
				See I133 LEFT SLIDING SIDE DOOR OPENING SWITCH ON COURTESY LIGHT	3
				See I134 RIGHT SLIDING SIDE DOOR OPENING SWITCH ON COURTESY LIGHT	3
				See N036 FRONT SUN ROOF MOTOR	1
				See N155 CENTRE SUN ROOF MOTOR	1
				See N155 CENTRE SUN ROOF MOTOR	8
				See N156 REAR SUN ROOF MOTOR	7
				See N156 REAR SUN ROOF MOTOR	1
				See P065 ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR	1
B2	0,35	S - 303		See D042B COURTESY LIGHT COUPLING (SUN ROOF BRIDGE)	2

2.2 16V JTD

2.0 16V JTD

3.0 24V V6

3.0 24V V6, 2.0 16V JTD, 2.2 16V JTD

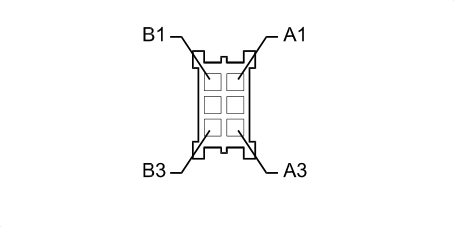

Wiring	Colour
See 71 SUN ROOF BRIDGE

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A2		3035		See D042B COURTESY LIGHT COUPLING (REAR)	3
A3		M306B	X	See D042B COURTESY LIGHT COUPLING (REAR)	8
				See N156 REAR SUN ROOF MOTOR (SUN ROOF BRIDGE)	7
				See N156 REAR SUN ROOF MOTOR (SUN ROOF BRIDGE)	1
				See N155 CENTRE SUN ROOF MOTOR	1
				See N155 CENTRE SUN ROOF MOTOR	8
				See H061 FRONT SUN ROOF SWITCH	5
				See I122 CENTRE AND REAR SUN ROOF SWITCH	5
				See I120 CENTRE SUN ROOF SWITCH( SUN ROOF BRIDGE)	5
				See I121 REAR SUN ROOF SWITCH	5
				See P065 ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR	1
				See I133 LEFT SLIDING SIDE DOOR OPENING SWITCH ON COURTESY LIGHT	3
				See I134 RIGHT SLIDING SIDE DOOR OPENING SWITCH ON COURTESY LIGHT( SUN ROOF BRIDGE)	3
				See I129 COURTESY LIGHTS DISABLING SWITCH	B1
				See G010A FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	3
				See G011 PASSENGER AREA FRONT COURTESY LIGHT	3
				See G012 PASSENGER AREA REAR COURTESY LIGHT	3
				See I110 DOOR CLOSING SWITCH	3
B1		M306A	X	See D042B COURTESY LIGHT COUPLING (REAR)	8
				See N156 REAR SUN ROOF MOTOR (SUN ROOF BRIDGE)	7
				See N156 REAR SUN ROOF MOTOR (SUN ROOF BRIDGE)	1
				See N155 CENTRE SUN ROOF MOTOR	1
				See N155 CENTRE SUN ROOF MOTOR	8
				See H061 FRONT SUN ROOF SWITCH	5
				See I122 CENTRE AND REAR SUN ROOF SWITCH	5
				See I120 CENTRE SUN ROOF SWITCH( SUN ROOF BRIDGE)	5
				See I121 REAR SUN ROOF SWITCH	5
				See P065 ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR	1
				See I133 LEFT SLIDING SIDE DOOR OPENING SWITCH ON COURTESY LIGHT	3
				See I134 RIGHT SLIDING SIDE DOOR OPENING SWITCH ON COURTESY LIGHT( SUN ROOF BRIDGE)	3
				See G010A FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	3
				See G011 PASSENGER AREA FRONT COURTESY LIGHT	3
				See G012 PASSENGER AREA REAR COURTESY LIGHT	3
				See I110 DOOR CLOSING SWITCH	3
				See I129 COURTESY LIGHTS DISABLING SWITCH	A3
B2		303		See D042B COURTESY LIGHT COUPLING (REAR)	2

2.0 16V JTD

Wiring	Colour
See 71 SUN ROOF BRIDGE

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A2		3035		See D042B COURTESY LIGHT COUPLING (REAR)	3
A3		M306B	X	See D042B COURTESY LIGHT COUPLING (REAR)	8
				See N156 REAR SUN ROOF MOTOR (SUN ROOF BRIDGE)	7
				See N156 REAR SUN ROOF MOTOR (SUN ROOF BRIDGE)	1
				See N155 CENTRE SUN ROOF MOTOR	1
				See N155 CENTRE SUN ROOF MOTOR	8
				See H061 FRONT SUN ROOF SWITCH	5
				See I122 CENTRE AND REAR SUN ROOF SWITCH	5
				See I120 CENTRE SUN ROOF SWITCH( SUN ROOF BRIDGE)	5
				See I121 REAR SUN ROOF SWITCH	5
				See P065 ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR	1
				See I133 LEFT SLIDING SIDE DOOR OPENING SWITCH ON COURTESY LIGHT	3
				See I134 RIGHT SLIDING SIDE DOOR OPENING SWITCH ON COURTESY LIGHT( SUN ROOF BRIDGE)	3
				See I129 COURTESY LIGHTS DISABLING SWITCH	B1
				See G010A FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	3
				See G011 PASSENGER AREA FRONT COURTESY LIGHT	3
				See G012 PASSENGER AREA REAR COURTESY LIGHT	3
				See I110 DOOR CLOSING SWITCH	3
B1		M306A	X	See D042B COURTESY LIGHT COUPLING (REAR)	8
				See N156 REAR SUN ROOF MOTOR (SUN ROOF BRIDGE)	7
				See N156 REAR SUN ROOF MOTOR (SUN ROOF BRIDGE)	1
				See N155 CENTRE SUN ROOF MOTOR	1
				See N155 CENTRE SUN ROOF MOTOR	8
				See H061 FRONT SUN ROOF SWITCH	5
				See I122 CENTRE AND REAR SUN ROOF SWITCH	5
				See I120 CENTRE SUN ROOF SWITCH( SUN ROOF BRIDGE)	5
				See I121 REAR SUN ROOF SWITCH	5
				See P065 ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR	1
				See I133 LEFT SLIDING SIDE DOOR OPENING SWITCH ON COURTESY LIGHT	3
				See I134 RIGHT SLIDING SIDE DOOR OPENING SWITCH ON COURTESY LIGHT( SUN ROOF BRIDGE)	3
				See G010A FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	3
				See G011 PASSENGER AREA FRONT COURTESY LIGHT	3
				See G012 PASSENGER AREA REAR COURTESY LIGHT	3
				See I110 DOOR CLOSING SWITCH	3
				See I129 COURTESY LIGHTS DISABLING SWITCH	A3
B2		303		See D042B COURTESY LIGHT COUPLING (REAR)	2

2.2 16V JTD

Wiring	Colour
See 71 SUN ROOF BRIDGE

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A2		3035		See D042B COURTESY LIGHT COUPLING (REAR)	3
A3		M306B	X	See D042B COURTESY LIGHT COUPLING (REAR)	8
				See N156 REAR SUN ROOF MOTOR (SUN ROOF BRIDGE)	7
				See N156 REAR SUN ROOF MOTOR (SUN ROOF BRIDGE)	1
				See N155 CENTRE SUN ROOF MOTOR	1
				See N155 CENTRE SUN ROOF MOTOR	8
				See H061 FRONT SUN ROOF SWITCH	5
				See I122 CENTRE AND REAR SUN ROOF SWITCH	5
				See I120 CENTRE SUN ROOF SWITCH( SUN ROOF BRIDGE)	5
				See I121 REAR SUN ROOF SWITCH	5
				See P065 ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR	1
				See I133 LEFT SLIDING SIDE DOOR OPENING SWITCH ON COURTESY LIGHT	3
				See I134 RIGHT SLIDING SIDE DOOR OPENING SWITCH ON COURTESY LIGHT( SUN ROOF BRIDGE)	3
				See I129 COURTESY LIGHTS DISABLING SWITCH	B1
				See G010A FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	3
				See G011 PASSENGER AREA FRONT COURTESY LIGHT	3
				See G012 PASSENGER AREA REAR COURTESY LIGHT	3
				See I110 DOOR CLOSING SWITCH	3
B1		M306A	X	See D042B COURTESY LIGHT COUPLING (REAR)	8
				See N156 REAR SUN ROOF MOTOR (SUN ROOF BRIDGE)	7
				See N156 REAR SUN ROOF MOTOR (SUN ROOF BRIDGE)	1
				See N155 CENTRE SUN ROOF MOTOR	1
				See N155 CENTRE SUN ROOF MOTOR	8
				See H061 FRONT SUN ROOF SWITCH	5
				See I122 CENTRE AND REAR SUN ROOF SWITCH	5
				See I120 CENTRE SUN ROOF SWITCH( SUN ROOF BRIDGE)	5
				See I121 REAR SUN ROOF SWITCH	5
				See P065 ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR	1
				See I133 LEFT SLIDING SIDE DOOR OPENING SWITCH ON COURTESY LIGHT	3
				See I134 RIGHT SLIDING SIDE DOOR OPENING SWITCH ON COURTESY LIGHT( SUN ROOF BRIDGE)	3
				See G010A FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	3
				See G011 PASSENGER AREA FRONT COURTESY LIGHT	3
				See G012 PASSENGER AREA REAR COURTESY LIGHT	3
				See I110 DOOR CLOSING SWITCH	3
				See I129 COURTESY LIGHTS DISABLING SWITCH	A3
B2		303		See D042B COURTESY LIGHT COUPLING (REAR)	2

3.0 24V V6

Wiring	Colour
See 71 SUN ROOF BRIDGE

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
A2		3035		See D042B COURTESY LIGHT COUPLING (REAR)	3
A3		M306B	X	See D042B COURTESY LIGHT COUPLING (REAR)	8
				See N156 REAR SUN ROOF MOTOR (SUN ROOF BRIDGE)	7
				See N156 REAR SUN ROOF MOTOR (SUN ROOF BRIDGE)	1
				See N155 CENTRE SUN ROOF MOTOR	1
				See N155 CENTRE SUN ROOF MOTOR	8
				See H061 FRONT SUN ROOF SWITCH	5
				See I122 CENTRE AND REAR SUN ROOF SWITCH	5
				See I120 CENTRE SUN ROOF SWITCH( SUN ROOF BRIDGE)	5
				See I121 REAR SUN ROOF SWITCH	5
				See P065 ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR	1
				See I133 LEFT SLIDING SIDE DOOR OPENING SWITCH ON COURTESY LIGHT	3
				See I134 RIGHT SLIDING SIDE DOOR OPENING SWITCH ON COURTESY LIGHT( SUN ROOF BRIDGE)	3
				See I129 COURTESY LIGHTS DISABLING SWITCH	B1
				See G010A FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	3
				See G011 PASSENGER AREA FRONT COURTESY LIGHT	3
				See G012 PASSENGER AREA REAR COURTESY LIGHT	3
				See I110 DOOR CLOSING SWITCH	3
B1		M306A	X	See D042B COURTESY LIGHT COUPLING (REAR)	8
				See N156 REAR SUN ROOF MOTOR (SUN ROOF BRIDGE)	7
				See N156 REAR SUN ROOF MOTOR (SUN ROOF BRIDGE)	1
				See N155 CENTRE SUN ROOF MOTOR	1
				See N155 CENTRE SUN ROOF MOTOR	8
				See H061 FRONT SUN ROOF SWITCH	5
				See I122 CENTRE AND REAR SUN ROOF SWITCH	5
				See I120 CENTRE SUN ROOF SWITCH( SUN ROOF BRIDGE)	5
				See I121 REAR SUN ROOF SWITCH	5
				See P065 ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR	1
				See I133 LEFT SLIDING SIDE DOOR OPENING SWITCH ON COURTESY LIGHT	3
				See I134 RIGHT SLIDING SIDE DOOR OPENING SWITCH ON COURTESY LIGHT( SUN ROOF BRIDGE)	3
				See G010A FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	3
				See G011 PASSENGER AREA FRONT COURTESY LIGHT	3
				See G012 PASSENGER AREA REAR COURTESY LIGHT	3
				See I110 DOOR CLOSING SWITCH	3
				See I129 COURTESY LIGHTS DISABLING SWITCH	A3
B2		303		See D042B COURTESY LIGHT COUPLING (REAR)	2
