21 · General

G010 front courtesy light

Connectors and pin-outsG010 front courtesy light

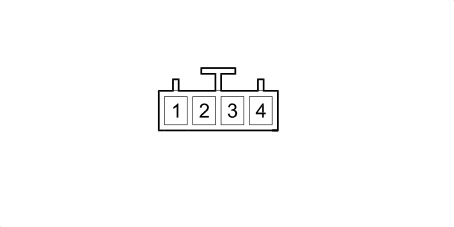

G010 FRONT COURTESY LIGHT

2.0 16V JTD, 2.2 16V JTD · MY 2005

Wiring	Colour
See 71 SUN ROOF BRIDGE	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	GV - M3010	X	See D042B COURTESY LIGHT COUPLING (SUN ROOF BRIDGE)	8
				See G011 PASSENGER AREA FRONT COURTESY LIGHT	1
				See I110 DOOR CLOSING SWITCH	3
				See I133 LEFT SLIDING SIDE DOOR OPENING SWITCH ON COURTESY LIGHT	3
				See H061 FRONT SUN ROOF SWITCH	5
				See N156 REAR SUN ROOF MOTOR	1
				See I122 CENTRE AND REAR SUN ROOF SWITCH	5
				See I120 CENTRE SUN ROOF SWITCH	5
				See I121 REAR SUN ROOF SWITCH	5
				See N155 CENTRE SUN ROOF MOTOR	8
				See N156 REAR SUN ROOF MOTOR	7
				See N036 FRONT SUN ROOF MOTOR	1
				See N155 CENTRE SUN ROOF MOTOR	1
2	0,5	L - A3010	X	See D042B COURTESY LIGHT COUPLING (SUN ROOF BRIDGE)	10
				See G032 PASSENGER SUN VISOR LIGHT	1
				See G012 PASSENGER AREA REAR COURTESY LIGHT	2
				See G031 DRIVER'S SUN VISOR LIGHT	1
3	0,5	B - 300		See D042B COURTESY LIGHT COUPLING (SUN ROOF BRIDGE)	4
4	0,35	S - 303		See D042B COURTESY LIGHT COUPLING (SUN ROOF BRIDGE)	2

2.2 16V JTD

2.0 16V JTD

3.0 24V V6

2.0 16v

Wiring	Colour
See 71 SUN ROOF BRIDGE	VERDE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2	0,5	B - A3015	X	See P065 ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR	2
				See D042B COURTESY LIGHT COUPLING (SUN ROOF BRIDGE)	10
				See G011 PASSENGER AREA FRONT COURTESY LIGHT	2
				See G012 PASSENGER AREA REAR COURTESY LIGHT	2
3	0,5	GV - M3015	X	See N036 FRONT SUN ROOF MOTOR	1
				See N156 REAR SUN ROOF MOTOR	7
				See N156 REAR SUN ROOF MOTOR	1
				See N155 CENTRE SUN ROOF MOTOR	1
				See N155 CENTRE SUN ROOF MOTOR	8
				See H061 FRONT SUN ROOF SWITCH	5
				See I122 CENTRE AND REAR SUN ROOF SWITCH	5
				See I120 CENTRE SUN ROOF SWITCH	5
				See I121 REAR SUN ROOF SWITCH	5
				See P065 ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR	1
				See I133 LEFT SLIDING SIDE DOOR OPENING SWITCH ON COURTESY LIGHT	3
				See I134 RIGHT SLIDING SIDE DOOR OPENING SWITCH ON COURTESY LIGHT	3
				See D042B COURTESY LIGHT COUPLING (SUN ROOF BRIDGE)	8
				See G011 PASSENGER AREA FRONT COURTESY LIGHT	3
				See G012 PASSENGER AREA REAR COURTESY LIGHT	3
				See I110 DOOR CLOSING SWITCH	3
				See I129 COURTESY LIGHTS DISABLING SWITCH	B1
				See I129 COURTESY LIGHTS DISABLING SWITCH	A3
4	0,5	B - 300		See D042B COURTESY LIGHT COUPLING (SUN ROOF BRIDGE)	4

2.0 16V JTD

Wiring	Colour
See 71 SUN ROOF BRIDGE

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
2		A3015	X	See D042B COURTESY LIGHT COUPLING (REAR)	10
				See P065 ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR	2
				See G011 PASSENGER AREA FRONT COURTESY LIGHT	2
				See G012 PASSENGER AREA REAR COURTESY LIGHT	2
3		M3015	X	See D042B COURTESY LIGHT COUPLING (REAR)	8
				See N036 FRONT SUN ROOF MOTOR (SUN ROOF BRIDGE)	1
				See N156 REAR SUN ROOF MOTOR (SUN ROOF BRIDGE)	7
				See N156 REAR SUN ROOF MOTOR (SUN ROOF BRIDGE)	1
				See N155 CENTRE SUN ROOF MOTOR	1
				See N155 CENTRE SUN ROOF MOTOR	8
				See H061 FRONT SUN ROOF SWITCH	5
				See I122 CENTRE AND REAR SUN ROOF SWITCH	5
				See I120 CENTRE SUN ROOF SWITCH( SUN ROOF BRIDGE)	5
				See I121 REAR SUN ROOF SWITCH	5
				See P065 ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR	1
				See I133 LEFT SLIDING SIDE DOOR OPENING SWITCH ON COURTESY LIGHT	3
				See I129 COURTESY LIGHTS DISABLING SWITCH	A3
				See I134 RIGHT SLIDING SIDE DOOR OPENING SWITCH ON COURTESY LIGHT( SUN ROOF BRIDGE)	3
				See G011 PASSENGER AREA FRONT COURTESY LIGHT	3
				See G012 PASSENGER AREA REAR COURTESY LIGHT	3
				See I110 DOOR CLOSING SWITCH	3
				See I129 COURTESY LIGHTS DISABLING SWITCH	B1
4		300		See D042B COURTESY LIGHT COUPLING (REAR)	4

2.2 16V JTD

Wiring	Colour
See 71 SUN ROOF BRIDGE

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
2		A3015	X	See D042B COURTESY LIGHT COUPLING (REAR)	10
				See P065 ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR	2
				See G011 PASSENGER AREA FRONT COURTESY LIGHT	2
				See G012 PASSENGER AREA REAR COURTESY LIGHT	2
3		M3015	X	See D042B COURTESY LIGHT COUPLING (REAR)	8
				See N036 FRONT SUN ROOF MOTOR (SUN ROOF BRIDGE)	1
				See N156 REAR SUN ROOF MOTOR (SUN ROOF BRIDGE)	7
				See N156 REAR SUN ROOF MOTOR (SUN ROOF BRIDGE)	1
				See N155 CENTRE SUN ROOF MOTOR	1
				See N155 CENTRE SUN ROOF MOTOR	8
				See H061 FRONT SUN ROOF SWITCH	5
				See I122 CENTRE AND REAR SUN ROOF SWITCH	5
				See I120 CENTRE SUN ROOF SWITCH( SUN ROOF BRIDGE)	5
				See I121 REAR SUN ROOF SWITCH	5
				See P065 ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR	1
				See I133 LEFT SLIDING SIDE DOOR OPENING SWITCH ON COURTESY LIGHT	3
				See I129 COURTESY LIGHTS DISABLING SWITCH	A3
				See I134 RIGHT SLIDING SIDE DOOR OPENING SWITCH ON COURTESY LIGHT( SUN ROOF BRIDGE)	3
				See G011 PASSENGER AREA FRONT COURTESY LIGHT	3
				See G012 PASSENGER AREA REAR COURTESY LIGHT	3
				See I110 DOOR CLOSING SWITCH	3
				See I129 COURTESY LIGHTS DISABLING SWITCH	B1
4		300		See D042B COURTESY LIGHT COUPLING (REAR)	4

3.0 24V V6

Wiring	Colour
See 71 SUN ROOF BRIDGE

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
2		A3015	X	See D042B COURTESY LIGHT COUPLING (REAR)	10
				See P065 ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR	2
				See G011 PASSENGER AREA FRONT COURTESY LIGHT	2
				See G012 PASSENGER AREA REAR COURTESY LIGHT	2
3		M3015	X	See D042B COURTESY LIGHT COUPLING (REAR)	8
				See N036 FRONT SUN ROOF MOTOR (SUN ROOF BRIDGE)	1
				See N156 REAR SUN ROOF MOTOR (SUN ROOF BRIDGE)	7
				See N156 REAR SUN ROOF MOTOR (SUN ROOF BRIDGE)	1
				See N155 CENTRE SUN ROOF MOTOR	1
				See N155 CENTRE SUN ROOF MOTOR	8
				See H061 FRONT SUN ROOF SWITCH	5
				See I122 CENTRE AND REAR SUN ROOF SWITCH	5
				See I120 CENTRE SUN ROOF SWITCH( SUN ROOF BRIDGE)	5
				See I121 REAR SUN ROOF SWITCH	5
				See P065 ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR	1
				See I133 LEFT SLIDING SIDE DOOR OPENING SWITCH ON COURTESY LIGHT	3
				See I129 COURTESY LIGHTS DISABLING SWITCH	A3
				See I134 RIGHT SLIDING SIDE DOOR OPENING SWITCH ON COURTESY LIGHT( SUN ROOF BRIDGE)	3
				See G011 PASSENGER AREA FRONT COURTESY LIGHT	3
				See G012 PASSENGER AREA REAR COURTESY LIGHT	3
				See I110 DOOR CLOSING SWITCH	3
				See I129 COURTESY LIGHTS DISABLING SWITCH	B1
4		300		See D042B COURTESY LIGHT COUPLING (REAR)	4

Wiring	Colour
See 71 SUN ROOF BRIDGE	GRIGIO

Wiring	Colour
See 71 SUN ROOF BRIDGE	GRIGIO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		A		See G032 PASSENGER SUN VISOR LIGHT	1
2		B		See G032 PASSENGER SUN VISOR LIGHT	2
