OPERATION

The pump (5), operated by the clutch pedal, pressurizes the hydraulic circuit and operates the clutch control cylinder (2).

The latter acts on the linkage (3) which "pulls" the thrust bearing, overcoming the action of the pressure plate springs.

This action causes the release of the clutch plate from the flywheel.

When the pedal is released, the action of the diaphragm springs returns the mechanical to the original position.

CLUTCH MECHANISM FOR 2.0 PETROL ENGINES

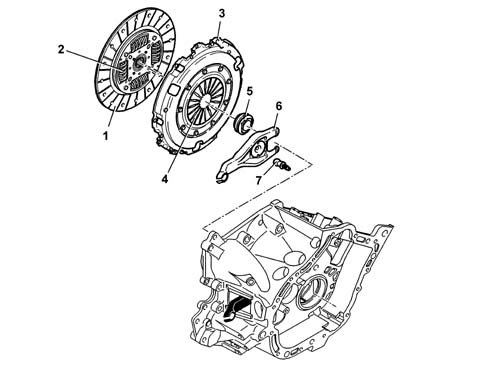

The diagram below shows the clutch mechanism for the 2.0 petrol engine.

• 1 Clutch plate
• 2 Flexible couplings
• 3 Drip tray
• 4 Thrust spring
• 5 Thrust bearing
• 6 Linkage
• 7 Pin

CLUTCH MECHANISM FOR 2.0 JTD ENGINES

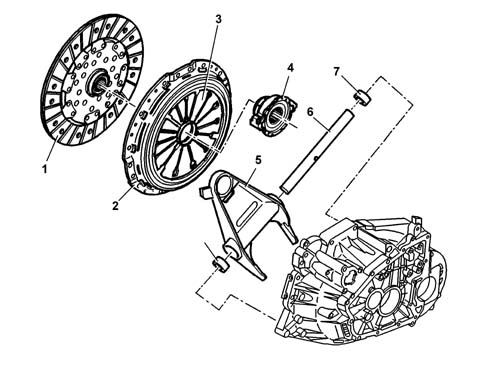

The diagram below shows the clutch mechanism for the 2.0 JTD engine.

• 1 Clutch plate
• 2 Drip tray
• 3 Thrust spring
• 4 Thrust bearing
• 5 Linkage
• 6 Linkage pin
• 7 Bushes

CLUTCH MECHANISM FOR 2.2 JTD ENGINES

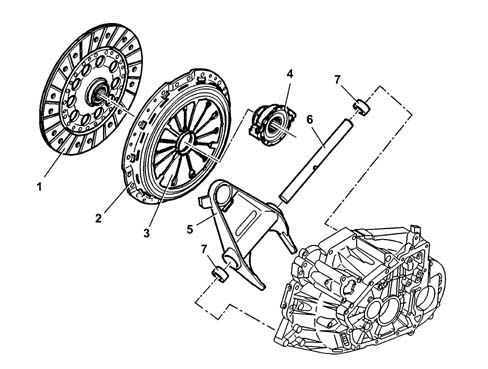

The diagram below shows the clutch mechanism for the 2.2 JTD engine.

• 1 Clutch plate
• 2 Drip tray
• 3 Thrust spring
• 4 Thrust bearing
• 5 Linkage
• 6 Linkage pin
• 7 Bushes
