COMPOSITION

The system consists of:

• a clutch drip tray with diaphragm springs (1);
• a clutch operating cylinder (2) fastened to the gearbox;
• linkage (3) operating the thrust bearing;
• a reservoir (4) shared by the braking and clutch systems;
• a clutch pump (master cylinder (5) fastened to the pedals assembly that compresses the oil;
• a pipe connecting the pump and the clutch operating cylinder;
• a thrust bearing;
• a clutch plate;

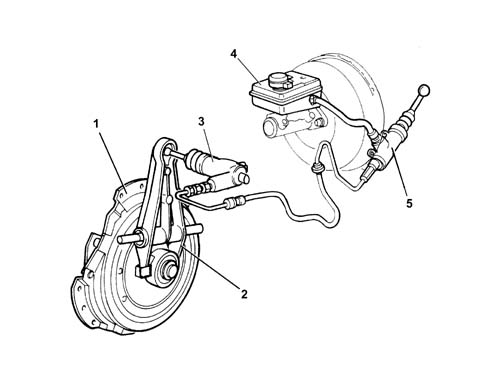

• 1 Clutch plate
• 2 Clutch operating cylinder
• 3 Linkage
• 4 Brake/clutch fluid reservoir
• 5 Clutch pump
