A040 heater plugs
- Make
- Fiat
- Model
- Panda Factory Service Manual
- Year
- 2003–2012
- Section
- Starting - recharging › A040 heater plugs
Connectors and pin-outsA040 heater plugs

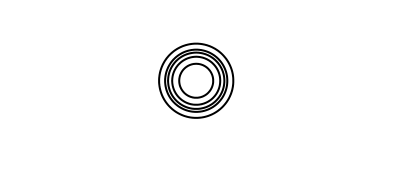

A040 HEATER PLUGS
A040A – Engine
| Wiring | Colour |
|---|---|
| See 50 ENGINE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 2,5 | R | See M015C PLUG PREHEATING CONTROL UNIT (ENGINE) | 1 | |
A040B – Engine
| Wiring | Colour |
|---|---|
| See 50 ENGINE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 2,5 | RG | See M015C PLUG PREHEATING CONTROL UNIT (ENGINE) | 2 | |
A040C – Engine
| Wiring | Colour |
|---|---|
| See 50 ENGINE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 2,5 | RB | See M015C PLUG PREHEATING CONTROL UNIT (ENGINE) | 3 | |
A040D – Engine
| Wiring | Colour |
|---|---|
| See 50 ENGINE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 2,5 | RN | See M015C PLUG PREHEATING CONTROL UNIT (ENGINE) | 4 | |
