Introduction - ENGINE AIR SUPPLY CIRCUIT

Make

Fiat

Model

Multipla Factory Service Manual

Year

1998–2010

Section

Engine air supply circuit › Introduction - ENGINE AIR SUPPLY CIRCUIT

EngineIntroduction - ENGINE AIR SUPPLY CIRCUIT

Introduction - ENGINE AIR SUPPLY CIRCUIT

1.9 JTD 8V

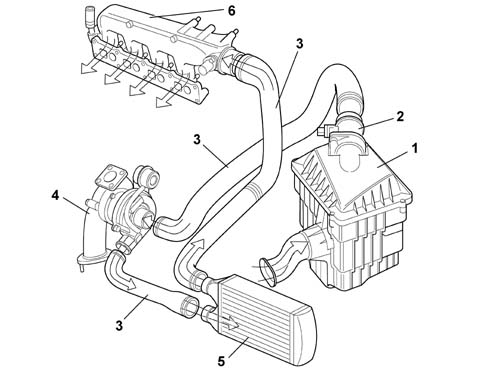

The intake air is filtered and directed to the exhaust gas turbocharger.

Before reaching the engine, the compressed air is cooled in the air/air heat exchanger.

1, Complete filter

2, Flow meter

3, Hose

4, Turbocharger

5, Air - air heat exchanger (intercooler)

6, Inlet chamber

08 Engine
