P20 Car radio

Make

Fiat

Model

Multipla Factory Service Manual

Year

1998–2010

Section

Various consumers › P20 Car radio

Connectors and pin-outsP20 Car radio

P20 Car radio

P020A – Facia

ELX setup, SX setup

Wiring	Colour
20 FACIA	BIANCO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
1	1,0	H	X	D075	1
				D078	1

04/02 to 08/03, 06/99 to 03/02, from 09/03, up to 05/99 · Navigator

Wiring	Colour
20 FACIA	BIANCO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
1		M		E050A	32
3		B		D020	B11
4	1,5	R		B001J	9
5		HR		D020	B8
6		GL	X	B001J	3
				D055	2
7	1,5	L	X	B001I	14
				D075	7
				M035	7
				D055	4
				D047	5
8	1,5	N	X	C020
				P050	3
				D075	10
				P051	3
				M035	4

04/02 to 08/03, 06/99 to 03/02, from 09/03, up to 05/99

Wiring	Colour
20 FACIA	BIANCO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
4	1,5	R		B001J	9
5		HR		D020	B8
6		GL	X	B001J	3
				D055	2
7	1,5	L	X	B001I	14
				D075	7
				M035	7
				D055	4
				D047	5
8	1,5	N	X	C020
				P050	3
				D075	10
				P051	3
				M035	4

All versions

Wiring	Colour
20 FACIA	BIANCO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
4	1,5	R		B001J	9
5		HR		D020	B8
6		GL	X	B001J	3
				D055	2
7	1,5	L	X	B026
				D075	7
				M035	7
				D055	4
				J060	86
				D020	C9
				H055	A
8	1,5	N	X	C020
				P050	3
				D075	10
				P051	3
				M035	4

Navigator

Wiring	Colour
20 FACIA	BIANCO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
1		M		E050A	32
3		B		D020	B11
4	1,5	R		B001J	9
5		HR		D020	B8
6		GL	X	B001J	3
				D055	2
7	1,5	L	X	B026
				D075	7
				M035	7
				D055	4
				J060	86
				D020	C9
				H055	A
8	1,5	N	X	C020
				P050	3
				D075	10
				P051	3
				M035	4

P020B – Facia

Wiring	Colour
20 FACIA	NERO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
1	1,5	Z		D020	C4
2	1,5	ZN		D020	D4
3	1,5	NR	X	P046	3
				D020	B6
4	1,5	NG	X	D020	B7
				P046	2
5	1,5	M		D020	C1
6	1,5	MN		D030	B12
7	1,5	NB		D020	D3
8	1,5	NL		D020	D2

Right hand drive

Wiring	Colour
20 FACIA	NERO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
1	1,5	Z		D020B	9
2	1,5	ZN		D020B	20
3	1,5	NR	X	D020B	8
				D031	6
4	1,5	NG	X	D031	5
				D020B	7
5	1,5	M	X	P045	3
				D030	10
6	1,5	MN	X	D030	17
				P045	2
7	1,5	NB		D020B	19
8	1,5	NL		D020B	18

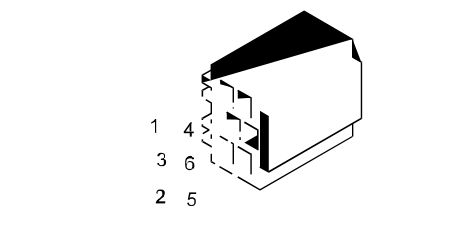

P020C – Electrical equipment

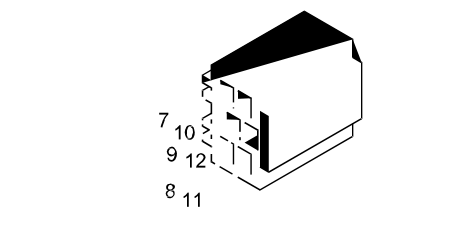

P020D – Facia

CONNECT

Wiring	Colour
20 FACIA	VERDE

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
7		HV		D096A	5
8		HL		D096A	6
9		HN		D096A	1
11		C		D020	D8
12		CN		D020	B9

All versions

Wiring	Colour
20 FACIA	VERDE

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
7		HV		D075	5
8		HL		D075	6
9	1	HN		D075	1
10		H		D047	3
11		B		D047	4
12		NZ		D047	2

Navigator

Wiring	Colour
20 FACIA	VERDE

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
7		HV		P131	16
8		HL		P131	7
9		HN		P131	4
10		V		P130	5
11		L		P130	4
12		N		P130	6

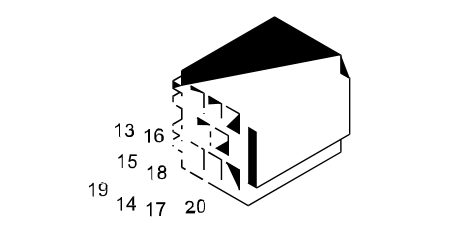

P020E

CONNECT

Wiring	Colour
	AZZURRO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
13			X	P075	10
				D096B	D
14			X	P075	13
				D096B	B
16			X	P075	4
				D096B	C
17			X	P075	2
				D096B	A
18				P075	6
19				P075	12
20				P075	8

All versions

Wiring	Colour
	AZZURRO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
13				P075	10
14				P075	13
16				P075	4
17				P075	2
18				P075	6
19				P075	12
20				P075	8

21 General
