J60 Optional service relay

Make

Fiat

Model

Multipla Factory Service Manual

Year

1998–2010

Section

Relays › J60 Optional service relay

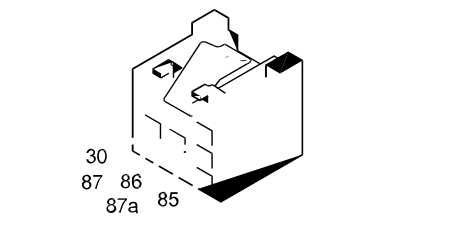

Connectors and pin-outsJ60 Optional service relay

J60 Optional service relay

J060 – Facia

ELX setup

Wiring	Colour
20 FACIA	ROSSO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
30	1,5	R	X	D078	3
				B014
85		N	X	J045	86
				M080
				J061	86
				M081	31
				J066	86
				C015A
				C020
				D078	9
				H090A	9
				M035	4
				I017A
				D031	1
				D031	4
				H055
				D078	2
				H047	6
				P051	3
				H048	6
				D075	10
				P020A	8
				P050	1
				B001I	6
				H015	4
				I016B
				E050A	3
				D030	2
86	1,0	LR	X	B001H	2
				H090A	6
				H005B	7
				M081	15
				J066	85
87	2,5	RL	X	D078	6
				D020A	11

SX setup

Wiring	Colour
20 FACIA	ROSSO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
30	1,5	R	X	D078	3
				B014
85		N	X	J045	86
				M080
				J061	86
				J065	86
				C015A
				C020
				D078	9
				H090A	9
				M035	4
				I017A
				D031	1
				D031	4
				H055
				D078	2
				H047	6
				P051	3
				H048	6
				D075	10
				P020A	8
				P050	1
				B001I	6
				H015	4
				I016B
				E050A	3
				D030	2
86	1,0	LR	X	B001H	2
				H090A	6
				H005B	7
				J065	85
87	2,5	RL	X	D078	6
				D020A	11

All versions

Wiring	Colour
20 FACIA	ROSSO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
30	1,5	R		B014
85		N	X	C020
				D047	1
				M074	6
				E040	1
				H015	4
				H090A	9
				J045	86
				J061	86
				D055	5
				B001I	6
86	1,0	LR	X	B026
				P020A	7
				D075	7
				M035	7
				D055	4
				D020	C9
				H055	A
87	2,5	RL		D020	A4

04/02 to 08/03, 06/99 to 03/02, from 09/03, up to 05/99

Wiring	Colour
20 FACIA	ROSSO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
30	1,5	R		B014
85		N	X	C020
				D047	1
				M074	6
				E040	1
				H015	4
				H090A	9
				J045	86
				J061	86
				D055	5
				B001I	6
86	1,0	LR	X	B001H	2
				H090A	6
				H055	1
					7
				J066	85
87	2,5	RL		D020	A4
