P005 single-tone horn

Make

Fiat

Model

Doblò Factory Service Manual

Year

2000–2010

Section

Various consumers › P005 single-tone horn

Connectors and pin-outsP005 single-tone horn

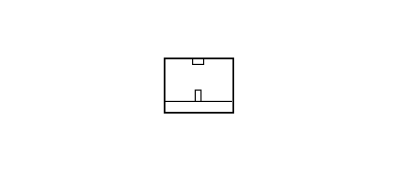

P005 SINGLE-TONE HORN

P005A – Front

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	ZB		See B001B JUNCTION UNIT (FRONT)	28

P005B – Front

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	N		See C010 LEFT FRONT EARTH	2

P5A – Front

1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	ZB		See B1B ENGINE COMPARTMENT JUNCTION UNIT ( FRONT )	28

P5B – Front

1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	ZB		See B1B ENGINE COMPARTMENT JUNCTION UNIT ( FRONT )	28
