H001 ignition switch

Make

Fiat

Model

Doblò Factory Service Manual

Year

2000–2010

Section

Manual electric controls › H001 ignition switch

Connectors and pin-outsH001 ignition switch

H001 IGNITION SWITCH

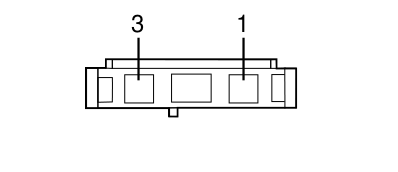

H001A – Front

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005

Wiring	Colour
See 12 FRONT	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	C		See B001B JUNCTION UNIT (FRONT)	30
2	1,5	R		See B001B JUNCTION UNIT (FRONT)	31
3	1,5	M		See B001B JUNCTION UNIT (FRONT)	15

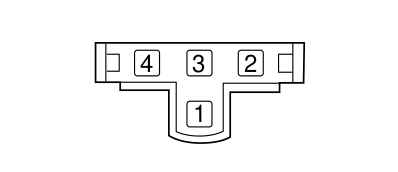

H001B – Facia

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005

Wiring	Colour
See 20 DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	NL		See B002E JUNCTION UNIT UNDER DASHBOARD (FACIA)	1
2	1,5	L		See B002E JUNCTION UNIT UNDER DASHBOARD (FACIA)	11
3	1,5	G		See B002E JUNCTION UNIT UNDER DASHBOARD (FACIA)	2
4	0,75	BN		See H005B STEERING COLUMN SWITCH UNIT (FACIA)	5

H1A – Front

1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL

Wiring	Colour
See 12 FRONT	bianco

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	C		See B1B ENGINE COMPARTMENT JUNCTION UNIT ( FRONT )	30
2	1,5	R		See B1B ENGINE COMPARTMENT JUNCTION UNIT ( FRONT )	31
3	1,5	M		See B1B ENGINE COMPARTMENT JUNCTION UNIT ( FRONT )	15

H1B – Facia

1.2 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V, 1.9 DIESEL

Wiring	Colour
See 20 DASHBOARD	bianco

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	NL		See B2E JUNCTION UNIT UNDER DASHBOARD ( FACIA )	1
2	1,5	L		See B2E JUNCTION UNIT UNDER DASHBOARD ( FACIA )	11
3	1,5	G		See B2E JUNCTION UNIT UNDER DASHBOARD ( FACIA )	2
4	0,75	AG		See H5B STALK UNIT ( FACIA )	5
