Central locking - wiring diagram

Make

Alfa Romeo

Model

GT Factory Service Manual

Year

2003–2010

Section

Electrically activated devices › Central locking - wiring diagram

Wiring diagrams and electrical functionsCentral locking - wiring diagram

CENTRAL LOCKING - WIRING DIAGRAM

Right hand drive

Wiring diagram

Components

Component code	Name	Assembly reference
B1	JUNCTION UNIT
B2	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B5	MAXI FUSE-1 BOX
B99	MAXIFUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C15	FACIA EARTH, DRIVER''S SIDE
C38	EARTH ON TUNNEL
D30	REAR COUPLING FOR /FRONT DOOR. DRIVER''S SIDE
D31	RIGHT FRONT DOOR REAR COUPLING/.
D97	SHORT CIRCUITING COUPLING
E50	INSTRUMENT PANEL	Op. 5560B ANALOGUE CONTROL PANEL
H1	IGNITION SWITCH	Op. 5520A IGNITION SWITCH
H12	HAZARD WARNING LIGHTS, FOG LIGHTS, REAR FOG LAMPS CONTROL	Op. 5505A MULTI-FUNCTION COMPONENTS
M1	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
N50	RIGHT FRONT DOOR LOCK LEFT	Op. 7005N FRONT DOOR CENTRAL LOCKING SYSTEM
N51	RIGHT FRONT DOOR LOCK MOTOR	Op. 7005N FRONT DOOR CENTRAL LOCKING SYSTEM
P93	RECEIVER AERIAL FOR ALARM AND CENTRAL LOCKING ( FRONT )

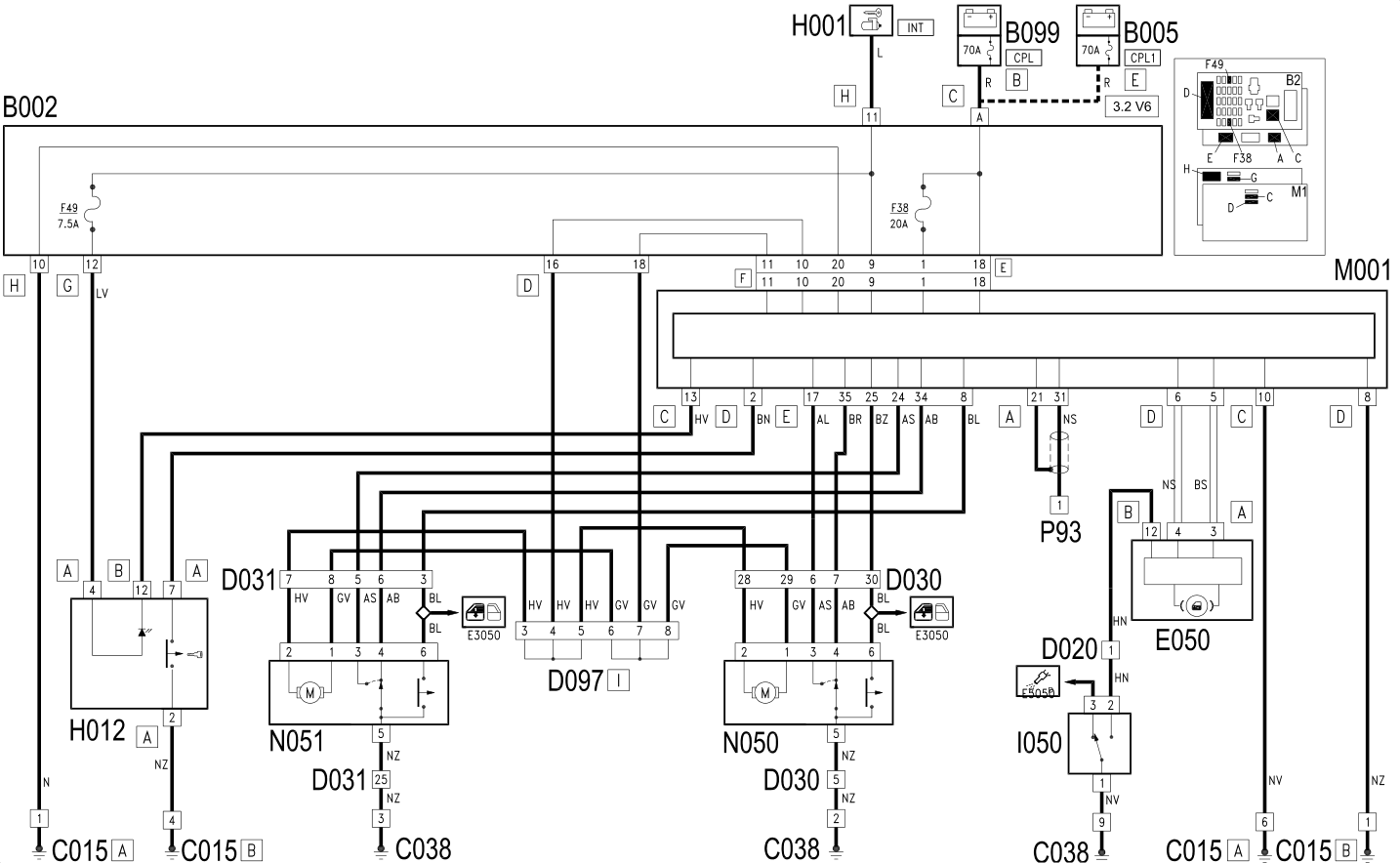

All versions

Wiring diagram

Components

Component code	Name	Assembly reference
B1	JUNCTION UNIT
B2	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B5	MAXI FUSE-1 BOX
B99	MAXIFUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C15	FACIA EARTH, DRIVER''S SIDE
C38	EARTH ON TUNNEL
D30	REAR COUPLING FOR /FRONT DOOR. DRIVER''S SIDE
D31	RIGHT FRONT DOOR REAR COUPLING/.
D97	SHORT CIRCUITING COUPLING
E50	INSTRUMENT PANEL	Op. 5560B ANALOGUE CONTROL PANEL
H1	IGNITION SWITCH	Op. 5520A IGNITION SWITCH
H12	HAZARD WARNING LIGHTS, FOG LIGHTS, REAR FOG LAMPS CONTROL	Op. 5505A MULTI-FUNCTION COMPONENTS
M1	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
N50	RIGHT FRONT DOOR LOCK LEFT	Op. 7005N FRONT DOOR CENTRAL LOCKING SYSTEM
N51	RIGHT FRONT DOOR LOCK MOTOR	Op. 7005N FRONT DOOR CENTRAL LOCKING SYSTEM
P93	RECEIVER AERIAL FOR ALARM AND CENTRAL LOCKING ( FRONT )
