OIL DIP STICK PIPE - R R

Operation 1084A16 · INDICATORS/CHECK DEVICES

2.0 JTS

Removing

Proceed with removal

Op. 1016A40 IGNITION COIL COVER ON CYLINDER HEAD- R+R

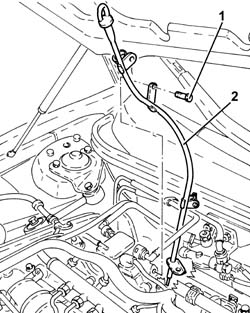

1. Remove the engine oil dipstick.

2. Undo the bolt (2a) and remove the engine oil dipstick pipe (2b).

Refitting

Place the complete engine oil dipstick tube back in its housing and fix it using the bolt.

Place the engine oil dipstick back in its seating.

Proceed with refitting

Op. 1016A40 IGNITION COIL COVER ON CYLINDER HEAD- R+R.

3.2 V6

Removing

Position the vehicle on the ramp

Proceed with removal

Op. 7055B54 UNDER-ENGINE GUARD - R R

1. Undo the nut securing the engine oil dipstick to the engine block.

1. Withdraw the oil level dipstick.

2. Remove the tube for the engine oil dipstick releasing it from the fastenings on the upper bracket.

Refitting

Place the tube for the engine oil dipstick back in its housing, and secure it to the upper bracket.

Tighten the nut securing the tube for the oil dipstick to the engine block.

Proceed with refitting

Op. 7055B54 UNDER-ENGINE GUARD - R R.

Place the engine oil dipstick back in its housing.

Remove the car from the ramps.

1.9 JTD 16V

Removing

Position the vehicle on the ramp

Proceed with removal

- 1016A10 sound-proofing cover - r + r

Proceed with removal

1. Undo the lower bolt fastening the engine oil dipstick pipe to the crankcase sump.

Op. 7055B54 UNDER-ENGINE GUARD - R R

1. Undo the upper bolt fixing the engine oil dipstick tube to the pressure pump mounting.

2. Remove the tube for the engine oil dipstick releasing it from the fastenings on the electrical wiring.

Refitting

Place the tube for the engine oil dipstick back in its housing, and secure it to the electrical wiring using the bands.

Tighten the upper bolt fixing the engine oil dipstick pipe to the pressure pump mounting.

Tighten the lower bolt fixing the engine oil dipstick pipe to the crankcase sump.

Proceed with refitting

Op. 7055B54 UNDER-ENGINE GUARD - R R.

Proceed with refitting

- 1016A10 sound-proofing cover - r + r

Remove the car from the ramps.

1.8 T.SPARK

Removing

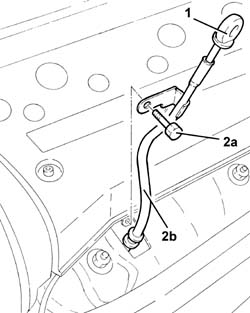

1. Remove the engine oil dipstick.

2. Undo the nut (2a) and remove the engine oil dipstick pipe (2b).

Refitting

Place the engine oil dipstick tube back in its housing and fix it using the bolt.

Place the engine oil dipstick back in its seating.
