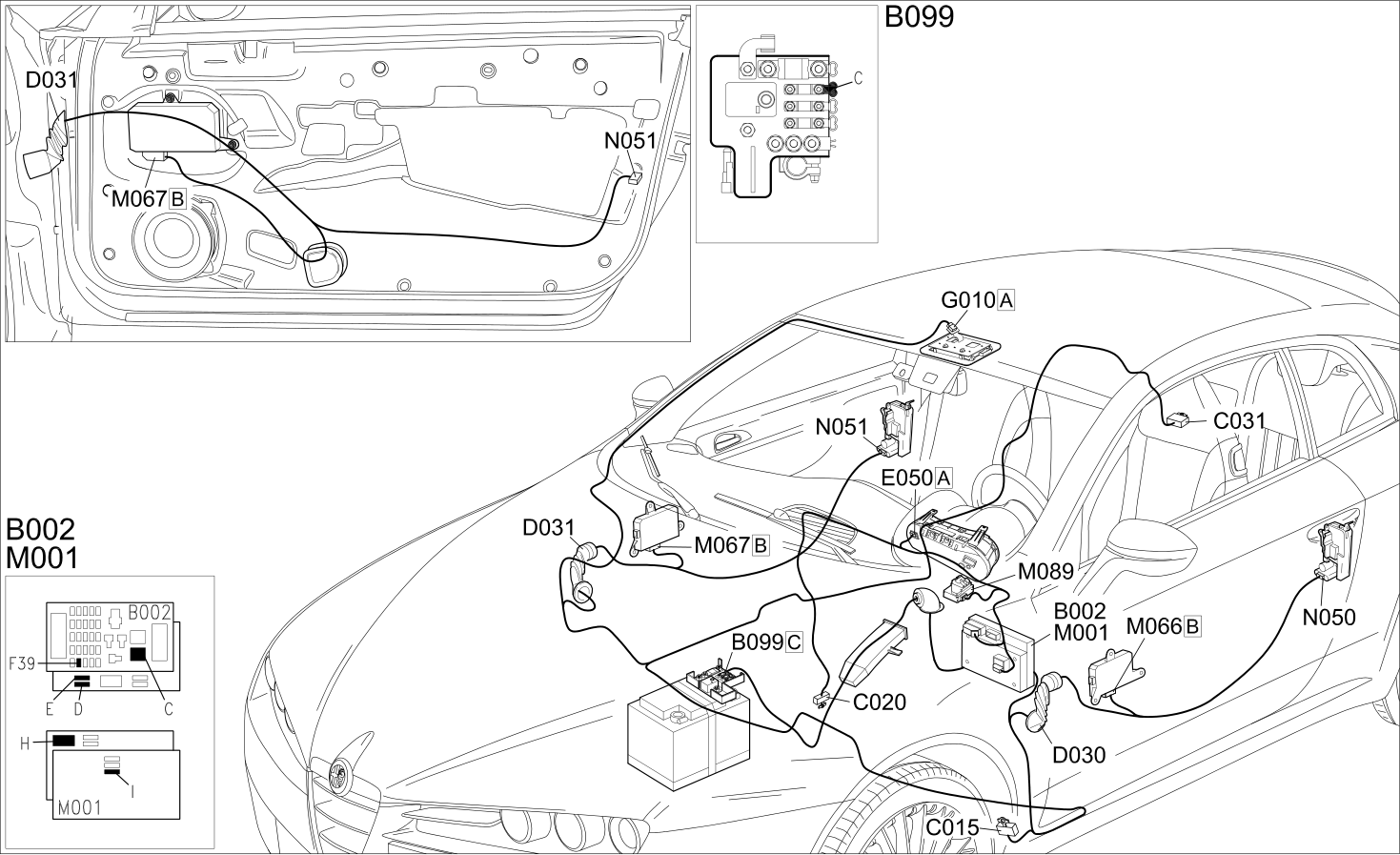

COURTESY LIGHTS - COMPONENT LOCATION

COMPONENT LOCATION

Component code	Description	Reference to the operation
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C015	DASHBOARD EARTH, DRIVER'S SIDE
C020	PASSENGER SIDE DASHBOARD EARTH
C031	RIGHT REAR EARTH
D030	DRIVER'S FRONT DOOR COUPLING
D031	PASSENGER FRONT DOOR COUPLING
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
G010	FRONT COURTESY LIGHT	Op. 7040E40 MODULAR FRONT COURTESY LIGHT - R R
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M066	DRIVER'S DOOR CONTROL UNIT (NPG)	Op. 5505A43 CONTROL UNIT (DIGITAL NETWORK NODE) IN DRIVER'S DOOR - R.R. WITH PANEL REMOVED
M067	PASSENGER DOOR CONTROL UNIT (NPP)	Op. 5505A47 PASSENGER SIDE DOOR CONTROL UNIT DIGITAL NETWORK MODE R R WITH PANEL REMOVED
M089	STEERING LOCK CONTROL UNIT (NBS)	Op. 5580E17 STEERING LOCK - R.R
N050	DRIVER'S FRONT DOOR LOCK GEARED MOTOR	Op. 7005N20 FRONT SIDE DOOR LOCK MOTOR/CATCH ASSEMBLY, LEFT OR RIGHT - R.R WITH DOOR PANEL AND SUPPORT FRAME REMOVED
N051	RIGHT FRONT DOOR LOCK GEARED MOTOR	Op. 7005N20 FRONT SIDE DOOR LOCK MOTOR/CATCH ASSEMBLY, LEFT OR RIGHT - R.R WITH DOOR PANEL AND SUPPORT FRAME REMOVED
