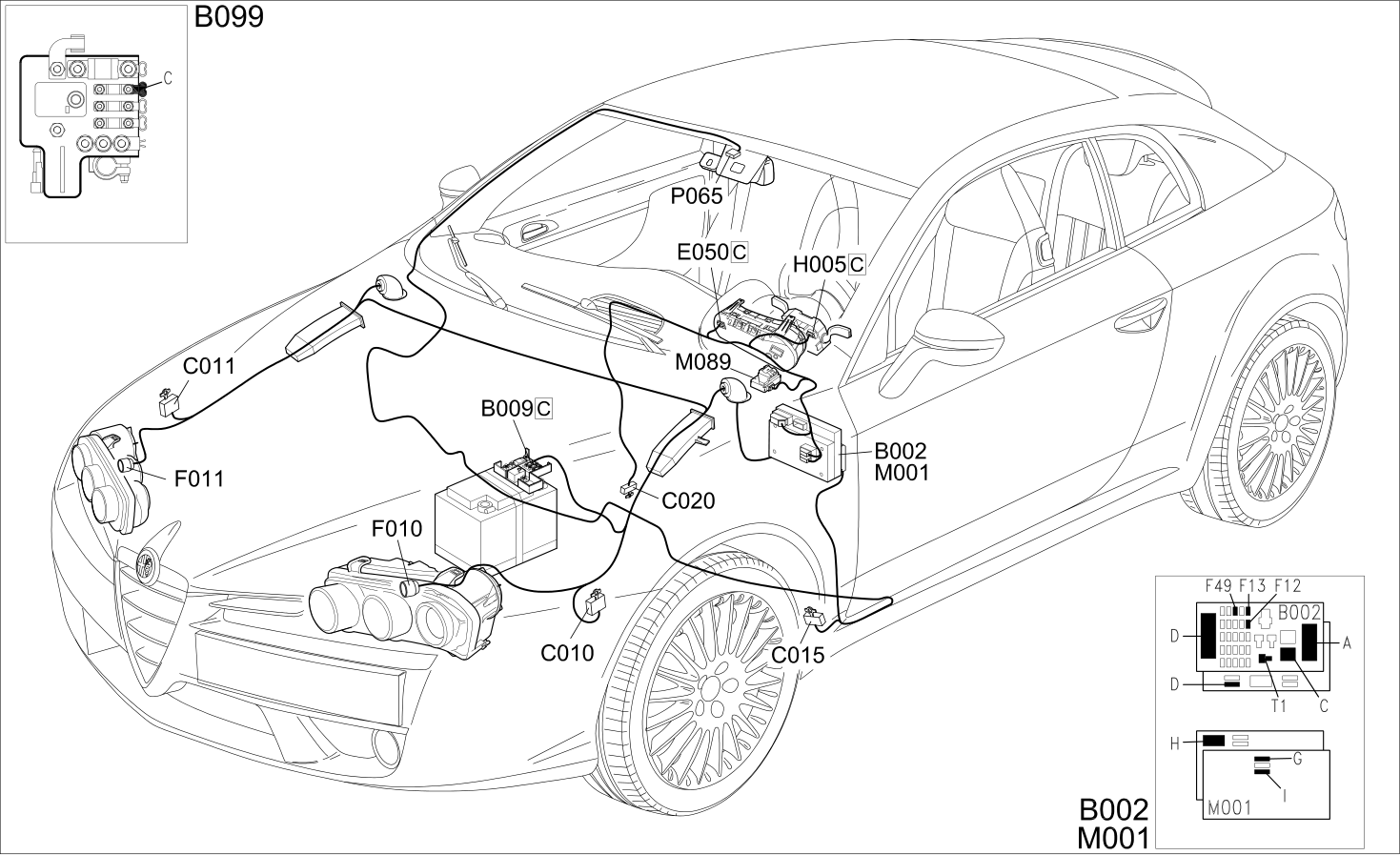

DIPPED HEADLIGHTS - COMPONENT LOCATION
COMPONENT LOCATION
| Component code | Description | Reference to the operation |
|---|---|---|
| B002 | JUNCTION UNIT UNDER DASHBOARD | Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R. |
| B099 | MAXI FUSE BOX ON BATTERY | Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R |
| C010 | LEFT FRONT EARTH | |
| C011 | RIGHT FRONT EARTH | |
| C015 | DASHBOARD EARTH, DRIVER'S SIDE | |
| C020 | PASSENGER SIDE DASHBOARD EARTH | |
| E050 | INSTRUMENT PANEL | Op. 5560B10 CONTROL PANEL - R+R |
| F010 | LEFT HEADLAMP | Op. 5540B70 LEFT FRONT LIGHT CLUSTER WITH DIRECTION INDICATOR - R.R. |
| F011 | RIGHT HEADLAMP | Op. 5540B71 RIGHT FRONT LIGHT CLUSTER WITH DIRECTION INDICATOR - R.R. |
| H005 | STEERING COLUMN SWITCH UNIT | Op. 5550A10 STALK UNIT ASSEMBLY - R+R |
| M001 | BODY COMPUTER | Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R. |
| M089 | STEERING LOCK CONTROL UNIT (NBS) | Op. 5580E17 STEERING LOCK - R.R |
| P065 | ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR |
COMPONENT LOCATION
| Component code | Description | Reference to the operation |
|---|---|---|
| B002 | JUNCTION UNIT UNDER DASHBOARD | Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R. |
| B099 | MAXI FUSE BOX ON BATTERY | Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R |
| C010 | LEFT FRONT EARTH | |
| C011 | RIGHT FRONT EARTH | |
| C015 | DASHBOARD EARTH, DRIVER'S SIDE | |
| C020 | PASSENGER SIDE DASHBOARD EARTH | |
| E050 | INSTRUMENT PANEL | Op. 5560B10 CONTROL PANEL - R+R |
| F010 | LEFT HEADLAMP | Op. 5540B70 LEFT FRONT LIGHT CLUSTER WITH DIRECTION INDICATOR - R.R. |
| F011 | RIGHT HEADLAMP | Op. 5540B71 RIGHT FRONT LIGHT CLUSTER WITH DIRECTION INDICATOR - R.R. |
| H005 | STEERING COLUMN SWITCH UNIT | Op. 5550A10 STALK UNIT ASSEMBLY - R+R |
| M001 | BODY COMPUTER | Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R. |
| M089 | STEERING LOCK CONTROL UNIT (NBS) | Op. 5580E17 STEERING LOCK - R.R |
| P065 | ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR |
