F010 left headlamp

Make

Alfa Romeo

Model

Brera and Spider Factory Service Manual

Year

2005–2010

Section

Exterior lights › F010 left headlamp

Connectors and pin-outsF010 left headlamp

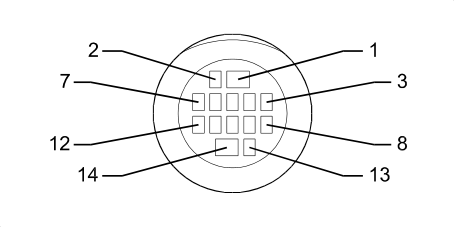

F010 LEFT HEADLAMP

Gas discharge headlamps

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1.5	VN	X	See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	3
				See F010 LEFT HEADLAMP	2
2	1	NV	X	See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	3
				See F010 LEFT HEADLAMP	1
3	1	HN		See B001A JUNCTION UNIT (FRONT)	25
4		GV		See M001B BODY COMPUTER (FRONT)	40
5	1	A		See M001B BODY COMPUTER (FRONT)	38
6	1	CB		See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	2
7		AR		See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	1
8		N		See C010 LEFT FRONT EARTH	2
9		L	X	See M001A BODY COMPUTER (FRONT)	10
				See F011 RIGHT HEADLAMP	9
10		MV	X	See M001B BODY COMPUTER (FRONT)	28
				See D006 FRONT/REAR COUPLING	2
11		BL	X	See M001B BODY COMPUTER (FRONT)	35
				See F011 RIGHT HEADLAMP	11
12		AL		See F011 RIGHT HEADLAMP	12
13	1.5	N		See C010 LEFT FRONT EARTH	23
14		N		See C010 LEFT FRONT EARTH	1

All versions

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2	1	NV		See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	3
3	1	HN		See B001A JUNCTION UNIT (FRONT)	25
4		GV		See M001B BODY COMPUTER (FRONT)	40
5	1	A		See M001B BODY COMPUTER (FRONT)	38
6	1	CB		See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	2
7		AR		See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	1
8		N		See C010 LEFT FRONT EARTH	2
14		N		See C010 LEFT FRONT EARTH	1

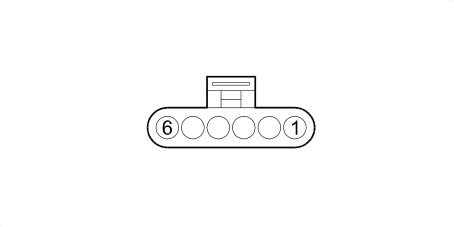

F010B – Front

Gas discharge headlamps

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		CN		See K001 HEADLAMP ALIGNMENT CORRECTOR FRONT POTENTIOMETER (CAF)	5
2		AL		See K001 HEADLAMP ALIGNMENT CORRECTOR FRONT POTENTIOMETER (CAF)	4
3		BH		See K001 HEADLAMP ALIGNMENT CORRECTOR FRONT POTENTIOMETER (CAF)	1
4		RV		See K002 HEADLAMP ALIGNMENT CORRECTOR REAR POTENTIOMETER (CAF)	5
5		HV		See K002 HEADLAMP ALIGNMENT CORRECTOR REAR POTENTIOMETER (CAF)	4
6		HR		See K002 HEADLAMP ALIGNMENT CORRECTOR REAR POTENTIOMETER (CAF)	1
