22 · General

P020 radio

Make: Alfa Romeo
Model: Brera and Spider Factory Service Manual
Year: 2005–2010
Section: Various consumers › P020 radio

‹ Prev P005 single-tone horn Next › P025 aerial feed/amplifier

Connectors and pin-outsP020 radio

P020 RADIO

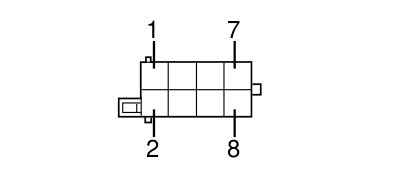

P020A – Dashboard

from 02/06

Wiring	Colour
See 20 DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		NS	X	See M001H BODY COMPUTER (DASHBOARD)	24
				See M089 STEERING LOCK CONTROL UNIT (NBS)	A3
				See D047 CLOCK SPRING COUPLING	3
				See H003 IGNITION DEVICE	3
				See M060A AIR BAG CONTROL UNIT (DASHBOARD)	8
				See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	10
				See D021 DASHBOARD/AIR CONDITIONING-HEATER COUPLING	5
2	1	BN		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	16
3		BS	X	See M001H BODY COMPUTER (DASHBOARD)	25
				See M089 STEERING LOCK CONTROL UNIT (NBS)	A2
				See D047 CLOCK SPRING COUPLING	4
				See H003 IGNITION DEVICE	8
				See M060A AIR BAG CONTROL UNIT (DASHBOARD)	7
				See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	11
				See D021 DASHBOARD/AIR CONDITIONING-HEATER COUPLING	4
4	2.5	B	X	See D001 FRONT/DASHBOARD COUPLING	37
				See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	17
8	2.5	N		See C020 PASSENGER SIDE DASHBOARD EARTH	9

up to 01/06

Wiring	Colour
See 20 DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		NS	X	See M001H BODY COMPUTER (DASHBOARD)	24
				See M089 STEERING LOCK CONTROL UNIT (NBS)	A3
				See D047 CLOCK SPRING COUPLING	3
				See H003 IGNITION DEVICE	3
				See M060A AIR BAG CONTROL UNIT (DASHBOARD)	8
				See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	10
				See D021 DASHBOARD/AIR CONDITIONING-HEATER COUPLING	5
2	1	BN		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	16
3		BS	X	See M001H BODY COMPUTER (DASHBOARD)	25
				See M089 STEERING LOCK CONTROL UNIT (NBS)	A2
				See D047 CLOCK SPRING COUPLING	4
				See H003 IGNITION DEVICE	8
				See M060A AIR BAG CONTROL UNIT (DASHBOARD)	7
				See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	11
				See D021 DASHBOARD/AIR CONDITIONING-HEATER COUPLING	4
4	2.5	B	X	See D001 FRONT/DASHBOARD COUPLING	37
				See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	17
8	2.5	N		See C020A PASSENGER SIDE DASHBOARD EARTH (DASHBOARD)	3

Connect Nav+

Wiring	Colour
See 20 DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		NS	X	See M001H BODY COMPUTER (DASHBOARD)	24
				See M089 STEERING LOCK CONTROL UNIT (NBS)	A3
				See D047 CLOCK SPRING COUPLING	3
				See H003 IGNITION DEVICE	3
				See M060A AIR BAG CONTROL UNIT (DASHBOARD)	8
				See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	10
				See D021 DASHBOARD/AIR CONDITIONING-HEATER COUPLING	5
2	1	BN		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	16
3		BS	X	See M001H BODY COMPUTER (DASHBOARD)	25
				See M089 STEERING LOCK CONTROL UNIT (NBS)	A2
				See D047 CLOCK SPRING COUPLING	4
				See H003 IGNITION DEVICE	8
				See M060A AIR BAG CONTROL UNIT (DASHBOARD)	7
				See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	11
				See D021 DASHBOARD/AIR CONDITIONING-HEATER COUPLING	4
4		AB	X	See B002H JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	3
				See D047 CLOCK SPRING COUPLING	5
				See H002 STARTING PUSH BUTTON	1
7	2.5	B	X	See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	17
				See D001 FRONT/DASHBOARD COUPLING	37
				See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	37
8	2.5	N		See C020A PASSENGER SIDE DASHBOARD EARTH (DASHBOARD)	3

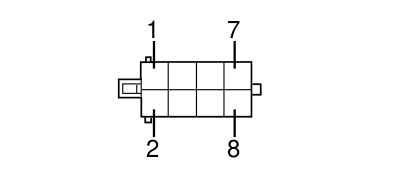

P020B – Dashboard

Connect Nav+

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1.5	HN		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	8
2	1.5	H		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	7
3	1.5	CB		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	6
4	1.5	C		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	5
5	1.5	AN		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	4
6	1.5	A		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	3
7	1.5	R		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	2
8	1.5	VN		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	1

All versions

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1.5	HN		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	8
2	1.5	H		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	7
3	1.5	CB		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	6
4	1.5	C		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	5
5	1.5	AN		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	4
6	1.5	A		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	3
7	1.5	R		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	2
8	1.5	VN		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	1

P020C – Dashboard

Bluetooth

Wiring	Colour
See 20 DASHBOARD	GIALLO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		L		See M162A BLUETOOTH CONTROL UNIT (DASHBOARD)	5
2		Z		See M162A BLUETOOTH CONTROL UNIT (DASHBOARD)	22
3		SCH		See M162A BLUETOOTH CONTROL UNIT (DASHBOARD)	21
6		M		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	15

Connect Nav+

Wiring	Colour
See 20 DASHBOARD	GIALLO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
6		M		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	15

P020D – Dashboard

Connect Nav+

Wiring	Colour
See 20 DASHBOARD	VERDE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
10		BV		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	2
12		BM		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	3

Bluetooth

Wiring	Colour
See 20 DASHBOARD	VERDE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
7		M		See M162A BLUETOOTH CONTROL UNIT (DASHBOARD)	7
8		S		See M162A BLUETOOTH CONTROL UNIT (DASHBOARD)	23
9		H		See M162A BLUETOOTH CONTROL UNIT (DASHBOARD)	25

All versions

Wiring	Colour
See 20 DASHBOARD	VERDE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
7		M		See D075 RADIO PHONE COUPLING	4
8		S		See D075 RADIO PHONE COUPLING	3
9		H		See D075 RADIO PHONE COUPLING	1

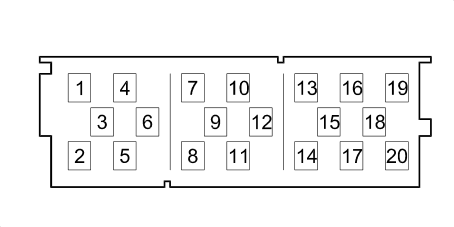

P020E – Cd changer cable

Wiring	Colour
See 79 CD CHANGER CABLE	BLU

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
13	1	L		See D096 CD CHANGER CABLE INTERMEDIATE COUPLING	10
14	1	V		See D096 CD CHANGER CABLE INTERMEDIATE COUPLING	13
15	1	G		See D096 CD CHANGER CABLE INTERMEDIATE COUPLING	3
16	1	R		See D096 CD CHANGER CABLE INTERMEDIATE COUPLING	4
17	1	C		See D096 CD CHANGER CABLE INTERMEDIATE COUPLING	2
18		SCH		See D096 CD CHANGER CABLE INTERMEDIATE COUPLING	6
19	1	B		See D096 CD CHANGER CABLE INTERMEDIATE COUPLING	12
20	1	N		See D096 CD CHANGER CABLE INTERMEDIATE COUPLING	8

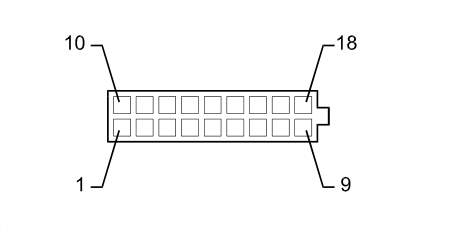

P020F – Dashboard

Connect Nav+

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
9		SCH		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	6
18		B		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	7
