P005 single-tone horn
- Make
- Alfa Romeo
- Model
- Brera and Spider Factory Service Manual
- Year
- 2005–2010
- Section
- Various consumers › P005 single-tone horn
Connectors and pin-outsP005 single-tone horn

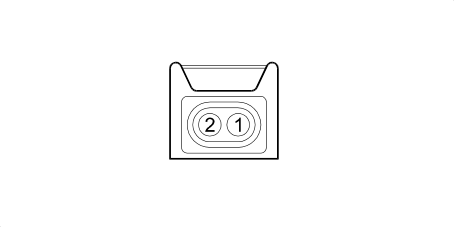

P005 SINGLE-TONE HORN
| Wiring | Colour |
|---|---|
| See 12 FRONT | BIANCO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1.5 | N | See C010 LEFT FRONT EARTH | 18 | |
| 2 | 1.5 | Z | See B001A JUNCTION UNIT (FRONT) | 28 | |
