ENGINE COOLANT SUPPLY RESERVOIR - R.R.

Operation 1088B10 · ENGINE COOLING RADIATOR

1.9 JTS, 2.2 JTS

Removing

1.9 JTD 8V, 1.9 JTD 16V, 2.4 JTD 20V

Removing

Op. 0010T20 ENGINE COOLANT - CHANGE

1. Loosen the bands and disconnect the system supply pipe (1a) and the degassing pipe (1b).

2. Undo the bolts (2a) and remove the engine coolant supply reservoir.

Refitting

- Fit the engine cooling supply reservoir in place and secure it using the bolts.

- Connect the degassing pipe and the system supply pipe and tighten the bands.

Op. 0010T20 ENGINE COOLANT - CHANGE

3.2 JTS

Removing

Op. 0010T20 ENGINE COOLANT - CHANGE

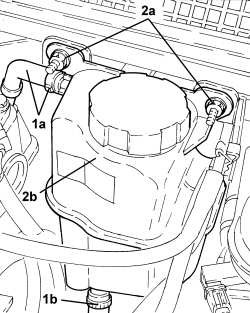

1. Loosen the bands, disconnect the degassing pipe (1a) and the system supply pipe (1b).

2. Undo the nuts (2a) and remove the engine coolant supply reservoir (2b).

Refitting

- Place the engine coolant supply reservoir back in its housing and secure it using the nuts.

- Connect the degasing pipe and the system supply pipe and tighten the bands.

Op. 0010T20 ENGINE COOLANT - CHANGE
