EngineIntroduction - engine air supply circuit

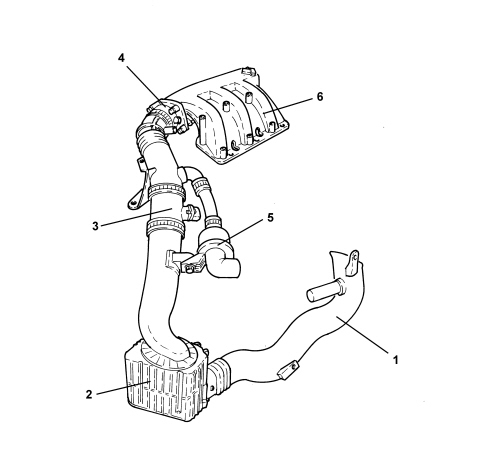

INTRODUCTION - ENGINE AIR SUPPLY CIRCUIT

1.9 JTS, 2.2 JTS

VIEW OF ASSEMBLY

INTRODUCTION - ENGINE AIR SUPPLY CIRCUIT

1. Cold air intake with resonator

2. Air filter assembly

3. Air flow meter

4. Throttle body

5. Resonator

6. Intake chamber

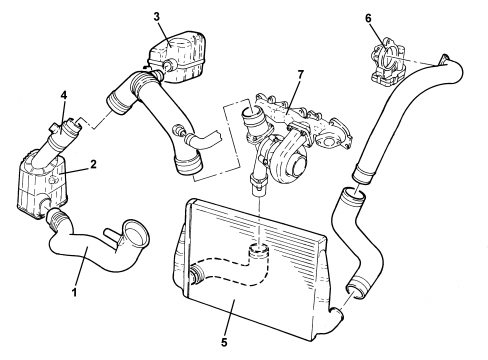

1.9 JTD 8V

AIR SUPPLY SYSTEM

INTRODUCTION - ENGINE AIR SUPPLY CIRCUIT

1. Cold air intake

2. Air filter assembly

3. Resonator

4. Air flow meter

5. Air-air heat exchanger (intercooler)

6. Throttle body

7. Turbocharger

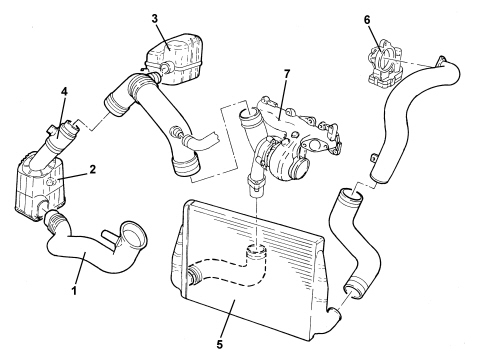

1.9 JTD 16V

AIR SUPPLY SYSTEM

INTRODUCTION - ENGINE AIR SUPPLY CIRCUIT

1. Cold air intake

2. Air filter assembly

3. Resonator

4. Air flow meter

5. Air-air heat exchanger (intercooler)

6. Throttle body

7. Turbocharger

2.4 JTD 20V

AIR SUPPLY SYSTEM

INTRODUCTION - ENGINE AIR SUPPLY CIRCUIT

1. Cold air intake

2. Air filter assembly

3. Resonator

4. Air flow meter

5. Air-air heat exchanger (intercooler)

6. Throttle body

7. Turbocharger

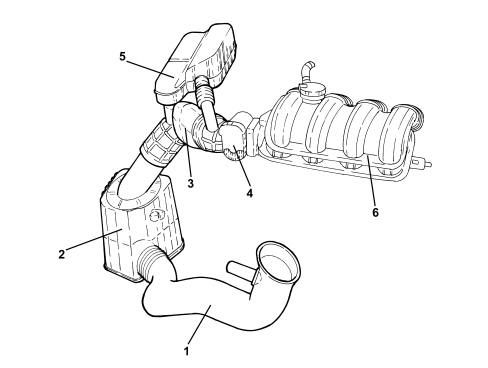

3.2 JTS

VIEW OF ASSEMBLY

INTRODUCTION - ENGINE AIR SUPPLY CIRCUIT

1. Cold air intake with resonator

2. Air filter assembly

3. Air flow meter

4. Throttle body

5. Resonator

6. Intake chamber
