LEFT UPPER LAMBDA SENSOR - R.R.
Removing
- Make sure that the ignition key is in the OFF position, then disconnect the battery terminal (-).
| Description | Connector | |
|---|---|---|
| Battery | See A001 BATTERY |

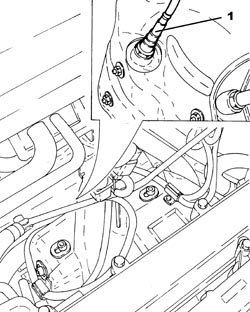

1. Disconnect the electrical connection for the left upper Lambda sensor.
| Description | Connector | |
|---|---|---|
| 1 | Lambda sensor on pre-catalyzer | See K015 LAMBDA SENSOR ON PRE-CATALYZER |
- Release the electrical wiring for the left upper Lambda sensor from the clip on the heat shield.
1. Using a suitable spanner, undo and remove the left upper Lambda sensor.
Refitting
1. Position the left upper Lambda sensor in its housing and tighten it to the recommended torque.
| Component | Fastening | dia | Value (daNm) | Validity |
|---|---|---|---|---|
| Upper left Lambda sensor | M18 | (exhaust manifold side with catalytic converter) 4.1 - 5.0 | 1.9 JTS 2.2 JTS 3.2 JTS |
- Secure the electrical wiring for the left upper Lambda sensor using the clip on the heat shield.
- Connect the electrical connection for the left upper Lambda sensor.
- Connect the negative battery terminal.
Removing
1. Disconnect the electrical connection for the left cylinder head upper Lambda sensor.
| Description | Connector | |
|---|---|---|
| 1 | Lambda sensor on pre-catalyzer | See K015 LAMBDA SENSOR ON PRE-CATALYZER |
1. Undo the left cylinder head upper Lambda sensor and remove it.
Refitting
- Position the left cylinder head left upper Lambda sensor in its housing and tighten it to the recommended torque.
| Component | Fastening | dia | Value (daNm) | Validity |
|---|---|---|---|---|
| Upper left Lambda sensor | M18 | 4.1 ÷ 5.0 |
- Connect the electrical connection for the left cylinder head upper Lambda sensor.
