BOOT WIRING - R R

Operation 5505B50 · DOOR, BOOT AND BONNET WIRING

Removing

Op. 7025B38 BOOT LID LOCK - R+R

1. Disconnect the electrical connections (1a, 1b).

2. Release the wiring retainers.

3. Release the cable duct (3a) from the boot lid opening (3b).

4. Extract the wiring (4a) from the boot lid passing through the opening (3b).

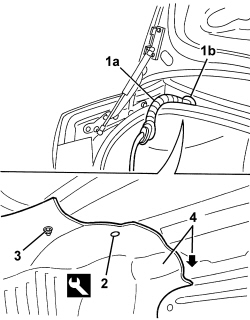

1. Release the cable duct (1a) from the body opening (1b).

2. Undo the retaining studs using the special tool.

3. Undo the nut.

4. Slightly lower the upper edge of the left boot trim.

1. Disconnect the electrical connection.

2. Withdraw the boot lid wiring from the body and recover.

Refitting

- Check that the wiring is not damaged and that the individual conducts are correctly fastened to the connections.

If necessary, carry out continuity tests.

- Insert the wiring in the body.

- Connect the electrical connection.

- Position the upper edge of the left boot trim and secure with the retaining stud and nut.

- Fit the bulkhead coupling through the hole in the body.

- Reinsert the wiring into the boot lid.

- Fit the bulkhead coupling to hole in the boot lid.

- Connect the wiring retainers.

- Connect the electrical connections.

Op. 7025B38 BOOT LID LOCK - R+R

- Check that the lights in the dismantled parts are working.
