LEFT GAS DISCHARGE LIGHT CLUSTER - R.R.

Operation 5540B81 · HEADLAMPS

Removing

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

Op. 7210E10 R.R. FRONT BUMPER

- Open the bonnet.

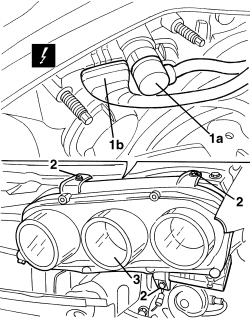

1. Disconnect the electrical connections for the light cluster.

Description	Component
LEFT HEADLAMP	See F010 LEFT HEADLAMP

2. Undo the bolts.

3. Remove the light cluster.

Refitting

- Check that the light cluster is not damaged.

- Position the light cluster and secure it using the bolts.

Component	Fastening	dia	Value (daNm)	Validity
LIGHT CLUSTER	Bolt	M6x20	0.7 ÷ 1.1

- Connect the electrical connections for the light cluster.

Op. 7210E10 R.R. FRONT BUMPER

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

Op. 5540B39 DIPPED HEADLAMP LIGHT BEAM - ALIGN
