Alfa Romeo 159 Factory Service Manual (2005-2011)22 · Connectors and pin-outs

22 · General

A030 ignition coil

Make: Alfa Romeo
Model: 159 Factory Service Manual
Year: 2005–2011
Section: Starting - recharging › A030 ignition coil

‹ Prev A020 starter motor Next › A040 heater plugs

Connectors and pin-outsA030 ignition coil

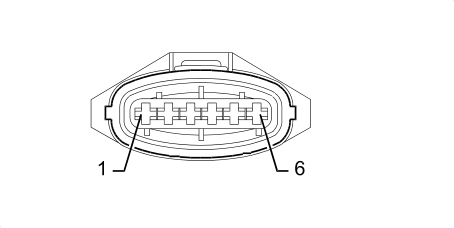

A030 IGNITION COIL

1.8

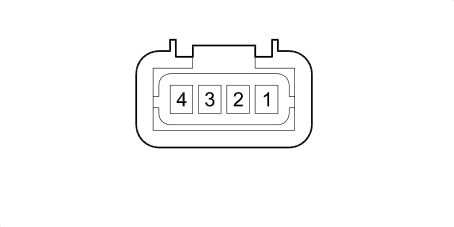

A030 IGNITION COIL

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	N		See C040B ENGINE EARTH (ENGINE)
2	1,5	AN		See D004A FRONT/ENGINE COUPLING (FRONT)	5
3		MV	X	See M010B ENGINE MANAGEMENT ECU (ENGINE)	49
3		MV	X	See M010B ENGINE MANAGEMENT ECU (ENGINE)	50
4		LB	X	See M010B ENGINE MANAGEMENT ECU (ENGINE)	33
4		LB	X	See M010B ENGINE MANAGEMENT ECU (ENGINE)	34
5		CR	X	See M010B ENGINE MANAGEMENT ECU (ENGINE)	17
5		CR	X	See M010B ENGINE MANAGEMENT ECU (ENGINE)	18
6		HG	X	See M010B ENGINE MANAGEMENT ECU (ENGINE)	1
6		HG	X	See M010B ENGINE MANAGEMENT ECU (ENGINE)	2

1.9 JTS, 2.2 JTS

A030 IGNITION COIL

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		N		See C040B ENGINE EARTH (ENGINE)
2	2,5	RL		See D004A FRONT/ENGINE COUPLING (FRONT)	7
3		NB		See M010B ENGINE MANAGEMENT ECU (ENGINE)	16
4		NL		See M010B ENGINE MANAGEMENT ECU (ENGINE)	1
5		NG		See M010B ENGINE MANAGEMENT ECU (ENGINE)	31
6		NR		See M010B ENGINE MANAGEMENT ECU (ENGINE)	46

A030A – Engine

3.2 JTS

A030 IGNITION COIL

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		Z		See M010B ENGINE MANAGEMENT ECU (ENGINE)	54
2	2,5	SN	X	See D004A FRONT/ENGINE COUPLING (FRONT)	7
				See A030B IGNITION COIL (ENGINE)	2
				See A030C IGNITION COIL (ENGINE)	2
				See A030D IGNITION COIL (ENGINE)	2
				See A030E IGNITION COIL (ENGINE)	2
				See A030F IGNITION COIL (ENGINE)	2
				See L065 FUEL SHUT-OFF SOLENOID VALVE	2
3		NB	X	See M010B ENGINE MANAGEMENT ECU (ENGINE)	1
				See A030C IGNITION COIL (ENGINE)	3
				See A030E IGNITION COIL (ENGINE)	3
4		N	X	See C040C ENGINE EARTH (ENGINE)
				See A030C IGNITION COIL (ENGINE)	4
				See A030E IGNITION COIL (ENGINE)	4

A030B – Engine

3.2 JTS

A030 IGNITION COIL

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		AB		See M010B ENGINE MANAGEMENT ECU (ENGINE)	55
2	2,5	SN	X	See D004A FRONT/ENGINE COUPLING (FRONT)	7
				See A030A IGNITION COIL (ENGINE)	2
				See A030C IGNITION COIL (ENGINE)	2
				See A030D IGNITION COIL (ENGINE)	2
				See A030E IGNITION COIL (ENGINE)	2
				See A030F IGNITION COIL (ENGINE)	2
				See L065 FUEL SHUT-OFF SOLENOID VALVE	2
3		NB	X	See M010B ENGINE MANAGEMENT ECU (ENGINE)	16
				See A030D IGNITION COIL (ENGINE)	3
				See A030F IGNITION COIL (ENGINE)	3
4		N	X	See C040B ENGINE EARTH (ENGINE)
				See A030D IGNITION COIL (ENGINE)	4
				See A030F IGNITION COIL (ENGINE)	4

A030C – Engine

3.2 JTS

A030 IGNITION COIL

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		A		See M010B ENGINE MANAGEMENT ECU (ENGINE)	56
2	2,5	SN	X	See D004A FRONT/ENGINE COUPLING (FRONT)	7
				See A030A IGNITION COIL (ENGINE)	2
				See A030B IGNITION COIL (ENGINE)	2
				See A030D IGNITION COIL (ENGINE)	2
				See A030E IGNITION COIL (ENGINE)	2
				See A030F IGNITION COIL (ENGINE)	2
				See L065 FUEL SHUT-OFF SOLENOID VALVE	2
3		NB	X	See M010B ENGINE MANAGEMENT ECU (ENGINE)	1
				See A030A IGNITION COIL (ENGINE)	3
				See A030E IGNITION COIL (ENGINE)	3
4		N	X	See C040C ENGINE EARTH (ENGINE)
				See A030A IGNITION COIL (ENGINE)	4
				See A030E IGNITION COIL (ENGINE)	4

A030D – Engine

3.2 JTS

A030 IGNITION COIL

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		VB		See M010B ENGINE MANAGEMENT ECU (ENGINE)	39
2	2,5	SN	X	See D004A FRONT/ENGINE COUPLING (FRONT)	7
				See A030A IGNITION COIL (ENGINE)	2
				See A030B IGNITION COIL (ENGINE)	2
				See A030C IGNITION COIL (ENGINE)	2
				See A030E IGNITION COIL (ENGINE)	2
				See A030F IGNITION COIL (ENGINE)	2
				See L065 FUEL SHUT-OFF SOLENOID VALVE	2
3		NB	X	See M010B ENGINE MANAGEMENT ECU (ENGINE)	16
				See A030B IGNITION COIL (ENGINE)	3
				See A030F IGNITION COIL (ENGINE)	3
4		N	X	See C040B ENGINE EARTH (ENGINE)
				See A030B IGNITION COIL (ENGINE)	4
				See A030F IGNITION COIL (ENGINE)	4

A030E – Engine

3.2 JTS

A030 IGNITION COIL

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		V		See M010B ENGINE MANAGEMENT ECU (ENGINE)	40
2	2,5	SN	X	See D004A FRONT/ENGINE COUPLING (FRONT)	7
				See A030A IGNITION COIL (ENGINE)	2
				See A030B IGNITION COIL (ENGINE)	2
				See A030C IGNITION COIL (ENGINE)	2
				See A030D IGNITION COIL (ENGINE)	2
				See A030F IGNITION COIL (ENGINE)	2
				See L065 FUEL SHUT-OFF SOLENOID VALVE	2
3		NB	X	See M010B ENGINE MANAGEMENT ECU (ENGINE)	1
				See A030A IGNITION COIL (ENGINE)	3
				See A030C IGNITION COIL (ENGINE)	3
4		N	X	See C040C ENGINE EARTH (ENGINE)
				See A030A IGNITION COIL (ENGINE)	4
				See A030C IGNITION COIL (ENGINE)	4

A030F – Engine

3.2 JTS

A030 IGNITION COIL

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		AB		See M010B ENGINE MANAGEMENT ECU (ENGINE)	55
2	2,5	SN	X	See D004A FRONT/ENGINE COUPLING (FRONT)	7
				See A030A IGNITION COIL (ENGINE)	2
				See A030B IGNITION COIL (ENGINE)	2
				See A030C IGNITION COIL (ENGINE)	2
				See A030D IGNITION COIL (ENGINE)	2
				See A030E IGNITION COIL (ENGINE)	2
				See L065 FUEL SHUT-OFF SOLENOID VALVE	2
3		NB	X	See M010B ENGINE MANAGEMENT ECU (ENGINE)	16
				See A030B IGNITION COIL (ENGINE)	3
				See A030D IGNITION COIL (ENGINE)	3
4		N	X	See C040B ENGINE EARTH (ENGINE)
				See A030B IGNITION COIL (ENGINE)	4
				See A030D IGNITION COIL (ENGINE)	4
