A020 starter motor

Make

Alfa Romeo

Model

159 Factory Service Manual

Year

2005–2011

Section

Starting - recharging › A020 starter motor

Connectors and pin-outsA020 starter motor

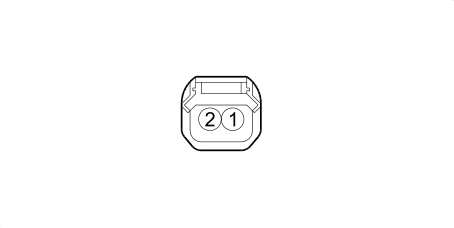

A020 STARTER MOTOR

A020A – Battery positive

Wiring	Colour
See 41 BATTERY POSITIVE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	35	R		See B099A MAXIFUSE BOX ON BATTERY (BATTERY POSITIVE)

A020A – Recharging

1.8, 1.9 JTS, 2.2 JTS, 1.9 JTD 8V, 1.9 JTD 16V, 2.4 JTD 20V

Wiring	Colour
See 45 RECHARGING

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	16	R		See A010B ALTERNATOR (RECHARGING)

A020B – Engine

1.9 JTS, 2.2 JTS

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	2,5	RN		See D004A FRONT/ENGINE COUPLING (FRONT)	6

1.9 JTD 8V, 1.9 JTD 16V, 2.4 JTD 20V

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2,5	M		See D004A FRONT/ENGINE COUPLING (FRONT)	6

3.2 JTS

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	2,5	Z		See D004A FRONT/ENGINE COUPLING (FRONT)	6

A020B – Engine services

1.8

Wiring	Colour
See 15 ENGINE SERVICES

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	2,5	RN		See D029 ENGINE CABLES/ENGINE SERVICES CABLE COUPLING	3
