J030 engine fan speed 1 relay

Make

Alfa Romeo

Model

159 Factory Service Manual

Year

2005–2011

Section

Relays › J030 engine fan speed 1 relay

Connectors and pin-outsJ030 engine fan speed 1 relay

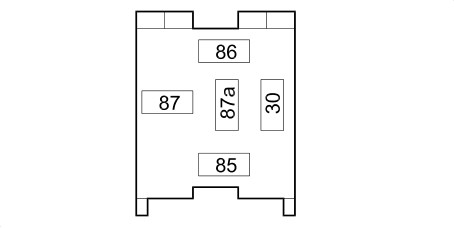

J030 ENGINE FAN SPEED 1 RELAY

1.8, 3.2 JTS, 2.4 JTD 20V

Wiring	Colour
See 11 RADIATOR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
30	4	H	X	See B001E JUNCTION UNIT (RADIATOR)	B
				See J030 ENGINE FAN SPEED 1 RELAY	85
87	4	L	X	See O010B ENGINE FAN ADJUSTMENT RESISTANCE - 1 (RADIATOR)
				See O012B ENGINE FAN 2 ADJUSTMENT RESISTANCE (RADIATOR)
85	2,5	H	X	See B001E JUNCTION UNIT (RADIATOR)	B
				See J030 ENGINE FAN SPEED 1 RELAY	30
86		B		See D009 FRONT/RADIATOR COUPLING	1
