DASHBOARD TRIM - R+R

Operation 7040A10 · PASSENGER COMPARTMENT TRIMS

Removing

Work on the left and right sides.

Op. 7040A65 CONSOLE SIDE CLOSING (ONE) - R.R.

Op. 7040G20 BULB HOLDER FOR COMPARTMENT LIGHTING IN DASHBOARD - R.R.

Op. 7040A31 DASHBOARD COMPARTMENT ASSEMBLY - R.R.

Op. 7040A26 STEERING COLUMN TRIM - R+R

Op. 5580C18 AIR BAG MODULE - R+R

Op. 4110A10 STEERING WHEEL - R+R FOR REPLACEMENT OR CHECKS

Op. 5550A10 STALK UNIT ASSEMBLY - R+R

Remove the three vents.

Op. 5010C34 AIR OUTLET ON CONSOLE - R+R

Remove the radio or, alternatively, the navigator.

Op. 5570T80 CAR RADIO EQUIPMENT - R+R

Op. 7040A17 AIR CONDITIONER CONTROLS

Op. 5010D56 SOLAR SENSOR - R.R FOLLOWING ELECTRICAL SYSTEM CHECK

Work on the left and right sides.

Op. 5570T92 FRONT TWEETER (ONE), LEFT OR RIGHT - R.R

Op. 7040A44 LEFT DASHBOARD SIDE TRIM - R.R.

Op. 5580C26 PASSENGER AIR BAG DISABLING KEY LOCK BARREL/SWITCH - R.R.

Op. 7040A45 RIGHT DASHBOARD SIDE TRIM - R.R.

Work on the left and right sides.

Op. 7040H30 FRONT PILLAR TRIM (ONE), LEFT OR RIGHT - R.R.

Op. 5560B10 CONTROL PANEL - R+R

Op. 7040A37 FUSE BOX COVER IN INSTRUMENT PANEL - R.R

Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.

Op. 5580C23 DRIVE SIDE KNEE PROTECTION AIR BAG MODULE R. R.

Work on the left and right sides.

Op. 7045A10 FRONT SEAT (ONE), LEFT OR RIGHT - R.R.

Op. 7040L71 BOX ON TUNNEL REAR COATING - R R

Op. 5010C32 AIR VENT ON TUNNEL COVER FOR REAR SEATS - R.R.

Op. 7040L37 GEAR LEVER TRIM - R.R

Op. 3380A44 HANDBRAKE/LINKAGE PROTECTION - R+R

Op. 7040L20 TUNNEL COVER - R.R

op. 7040L23

Op. 7040L74 TUNNEL TRIM SUPPORT BRACKET/MOUNT R R

Work on the left and right sides.

Op. 7040L40 FRONT DOOR RUNNING BOARD (ONE), LEFT OR RIGHT - R.R.

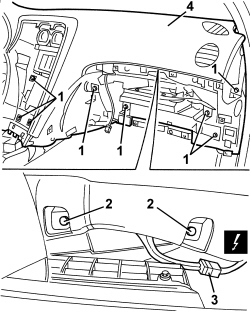

1. Undo the crossmember fixing bolts, driver''s side.

1. Undo the dashboard fixing bolts, passenger side.

2. Unscrew the bolts securing the passenger airbag to the under-dashboard crossmember.

3. Disconnect the electrical connection.

4. Remove the dashboard trim.

If necessary:

Op. 7040A27 DASHBOARD TRIM - STRIPPING FOLLOWING REPLACEMENT

Refitting

- Check that the dashboard trim is not damaged.

- If removed:

Op. 7040A27 DASHBOARD TRIM - STRIPPING FOLLOWING REPLACEMENT

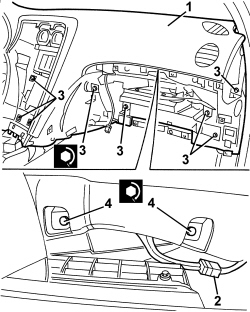

1. Position the dashboard trim in its housing.

2. Connect the passenger airbag electrical connection.

3. Tighten the bolts securing the passenger airbag to the under-dashboard crossmember.

4. Tighten the dashboard trim bolts.

Op. 7040L40 FRONT DOOR RUNNING BOARD (ONE), LEFT OR RIGHT - R.R.

Op. 7040L74 TUNNEL TRIM SUPPORT BRACKET/MOUNT R R

Op. 7040L23 TRIM ON TUNNEL COVER - R.R.

Op. 7040L20 TUNNEL COVER - R.R

Op. 3380A44 HANDBRAKE/LINKAGE PROTECTION - R+R

Op. 7040L37 GEAR LEVER TRIM - R.R

Op. 5010C32 AIR VENT ON TUNNEL COVER FOR REAR SEATS - R.R.

Op. 7040L71 BOX ON TUNNEL REAR COATING - R R

Op. 7045A10 FRONT SEAT (ONE), LEFT OR RIGHT - R.R.

Op. 5580C23 DRIVE SIDE KNEE PROTECTION AIR BAG MODULE R. R.

Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.

Op. 7040A37 FUSE BOX COVER IN INSTRUMENT PANEL - R.R

Op. 5560B10 CONTROL PANEL - R+R

Op. 7040H30 FRONT PILLAR TRIM (ONE), LEFT OR RIGHT - R.R.

Op. 7040A45 RIGHT DASHBOARD SIDE TRIM - R.R.

Op. 5580C26 PASSENGER AIR BAG DISABLING KEY LOCK BARREL/SWITCH - R.R.

Op. 7040A44 LEFT DASHBOARD SIDE TRIM - R.R.

Op. 5570T92 FRONT TWEETER (ONE), LEFT OR RIGHT - R.R

Op. 5010D56 SOLAR SENSOR - R.R FOLLOWING ELECTRICAL SYSTEM CHECK

Op. 7040A17 AIR CONDITIONER CONTROLS

Op. 5570T80 CAR RADIO EQUIPMENT - R+R

Op. 5010C34 AIR OUTLET ON CONSOLE - R+R

Op. 5550A10 STALK UNIT ASSEMBLY - R+R

Op. 4110A10 STEERING WHEEL - R+R FOR REPLACEMENT OR CHECKS

Op. 5580C18 AIR BAG MODULE - R+R

Op. 7040A26 STEERING COLUMN TRIM - R+R

Op. 7040A31 DASHBOARD COMPARTMENT ASSEMBLY - R.R.

Op. 7040G20 BULB HOLDER FOR COMPARTMENT LIGHTING IN DASHBOARD - R.R.

Op. 7040A65 CONSOLE SIDE CLOSING (ONE) - R.R.
