E2020 Turn/ hazard lights (Euro3)

Description

The direction indicators and hazard warning lights delimit the outer dimensions of the car.

The left and right direction indicators are operated by raising or lowering the appropriate lever on the stalk unit.

The hazard warning lights (right and left direction indicators operated simultaneously) are turned on by the pressing the red button at the centre of the dashboard.

The direction indicators work with the ignition on, while for safety reasons, the hazard warning lights can be turned on at any time, as they are supplied directly from the battery.

The circuit for the direction indicators and hazard warning lights is protected by a single fuse.

Two warning lights on the instrument panel (rev counter module), which also flash, show when the right or left direction indicator is on.

The red hazard warning light button contains two leds: the first green one is ignition-operated and lights up the specific symbol; The second red light comes on intermittently when the hazard warning lights are operated.

The hazard warning lights are also operated by the door opening remote control, which controls a special relay.

Description of operation

The circuit is controlled by the hazard warning lights switch H20.

The intermittent device is located on the steering column switch unit H5. It is connected to earth at pin 7 of connector A and receives a supply signal at pin 7 of connector D through switch H20:

• when the hazard lights are not on, the supply is controlled by the ignition (INT/A) from fuse F6 of the additional fuse box B98B.
• when the hazard warning lights are switched on, the supply is direct from the battery through fuse F9 of the junction unit B1 and maxifuse J/B1of fuse B99.

The intermittent device produces a signal which supplies the switch for the direction indicators on the steering column switch H5 and the switch H20.

The operation, in one direction or another, of the steering column switch lever H5 supplies the right direction indicators (F11, F21, F31) or the left ones (F10, F20, F30).

At the same time the warning light, located in the rev counter module E15, comes on.

Pressing the switch H20 closes three contacts which simultaneously supply all the lights (right branch and left branch) close and the red LED in the actual switch which lights up the symbol.

In switch H20 there is also a green LED which comes on when the ignition is switched on (INT/A).

All the hazard warning lights are also operated by alarm remote control receiver M35, which controls the special relay J43.

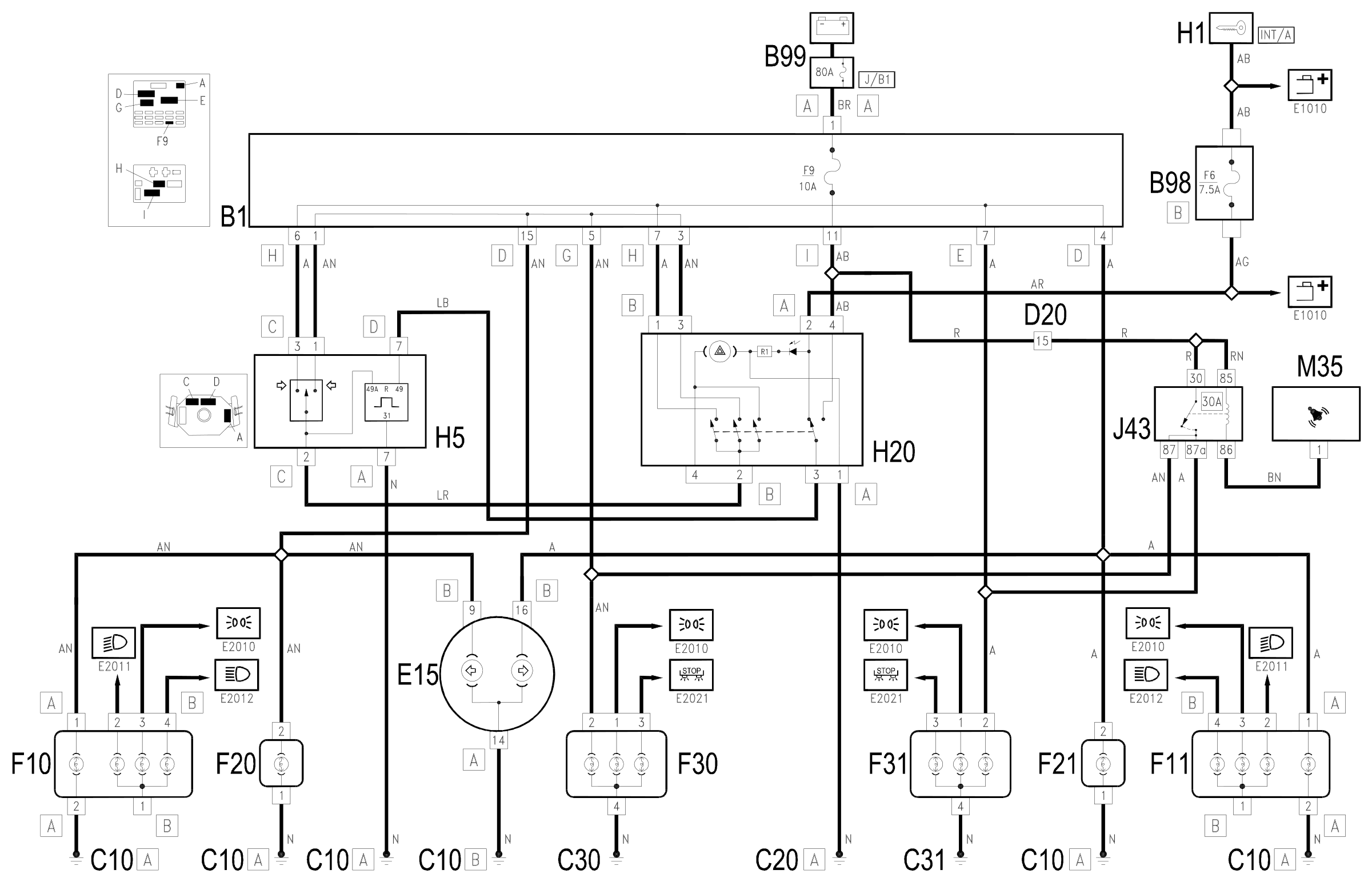

Wiring diagram

Components

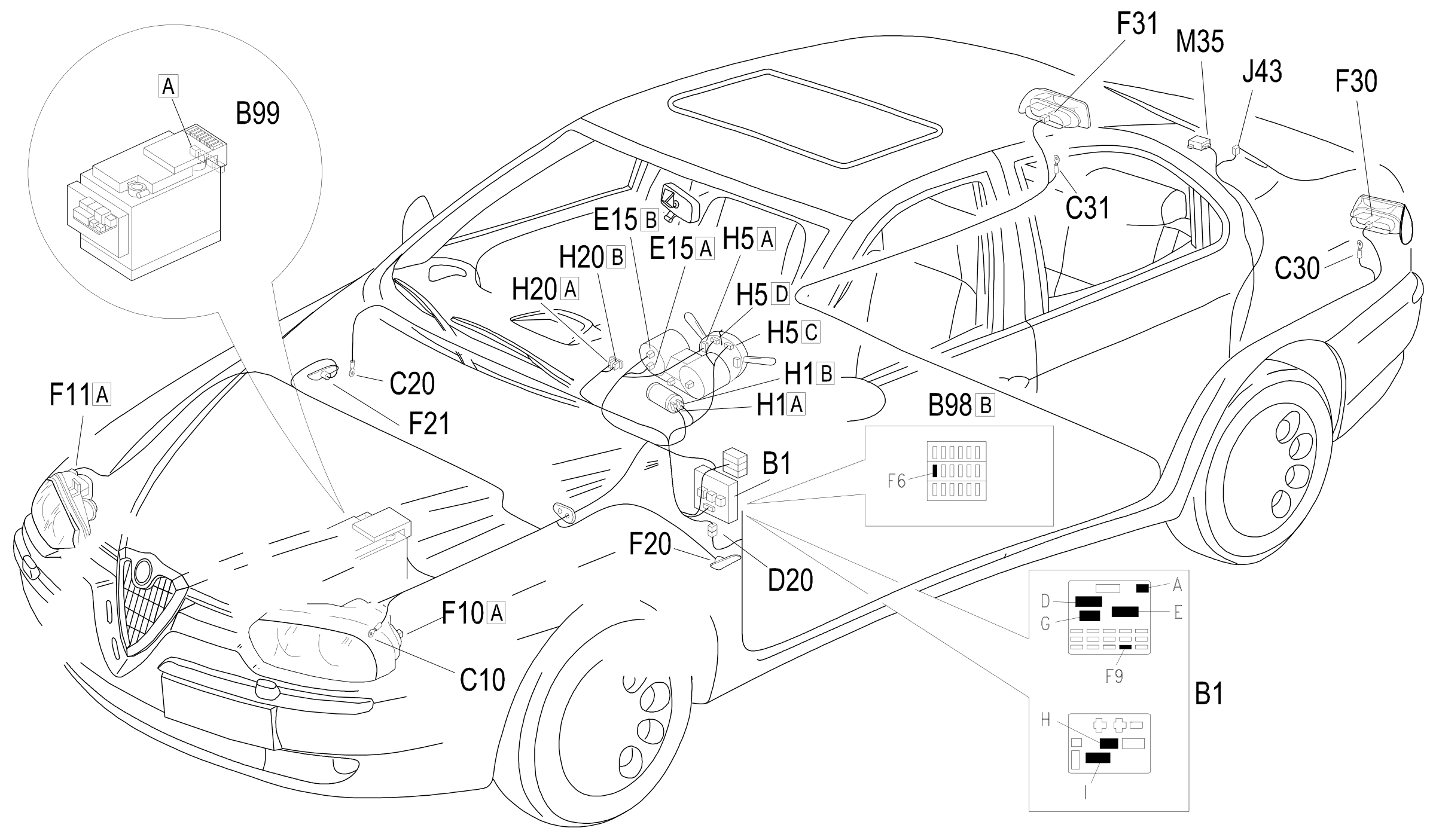

Component location
