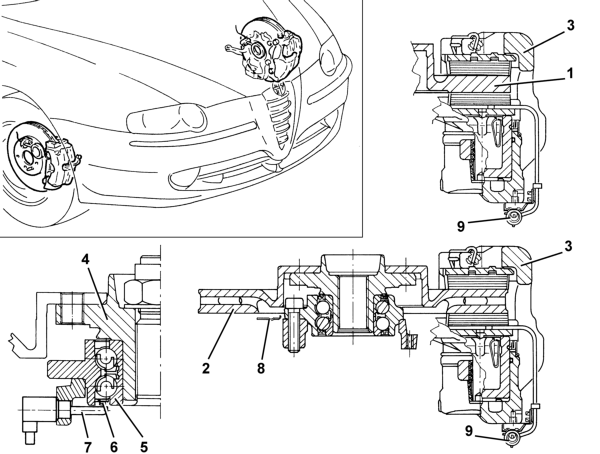

Front disc brakes – construction features

• 1 1.6 T. SPARK - 105 BHP brake disc
• 2 1.6 T. SPARK 120 BHP 2.0 T. SPARK Selespeed
• 3 Brake caliper
• 4 Hub
• 5 Hub bearing
• 6 Magnetic ring
• 7 Active ABS sensor
• 8 Guard
• 9 Pad wear warning light connection

Two different vehicle configurations have been adopted on the vehicle in view of weight and power differences between different versions:

The 1.6 T. SPARK - 105 BHP version comes with solid discs and Theves floating aluminium calipers with automatic play take-up

other versions cme with ventilated discs and Theves floating cast iron calipers with automatic play take-up

A multipolar magnetic ring fitted to the inner hub bearing race indicates wheel movement to the active ABS sensor [ 3340 ( Characteristic of working principle 3340 Anti-lock brake

system (abs))]
