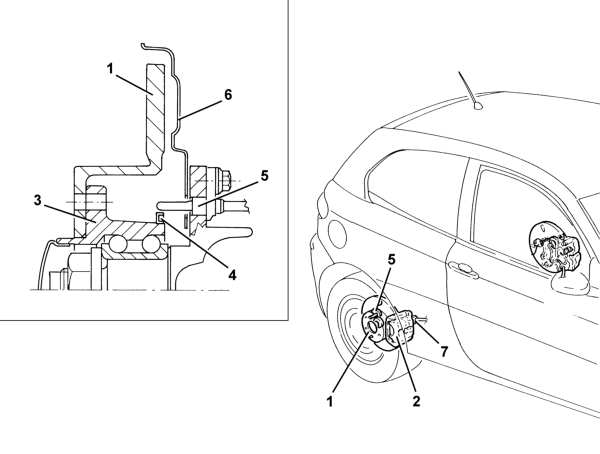

Rear disc brakes – construction features
- 1 Brake disc
- 2 Brake caliper
- 3 Hub outer race
- 4 Multipolar magnetic ring
- 5 ABS active sensor
- 6 Guard
- 7 Handbrake link anchorage
On all versions, the rear wheels are fitted with a brake system with solid discs and LUCAS floating aluminium calipers with automatic play take-up.
The brake caliper mechanism is operated mechanically by means of the handbrake lever [ 3340 ( Characteristic of working principle 3340 Anti-lock brake system
(abs))].
The hub outer race is fitted with a multipolar magnetic ring that indicates wheel movements to the active ABS sensor [ 3340 ( Characteristic of working principle 3340 Anti-lock brake
system (abs))] secured to the suspension arm.
