High/low cross shaft housing

Make

Land Rover

Model

Gearboxes LT230Q Transfer Box

Section

COMPONENT DISMANTLING › High/low cross shaft housing

OVERHAULHigh/low cross shaft housing

TRANSFER BOX

6

OVERHAUL

All transfer boxes

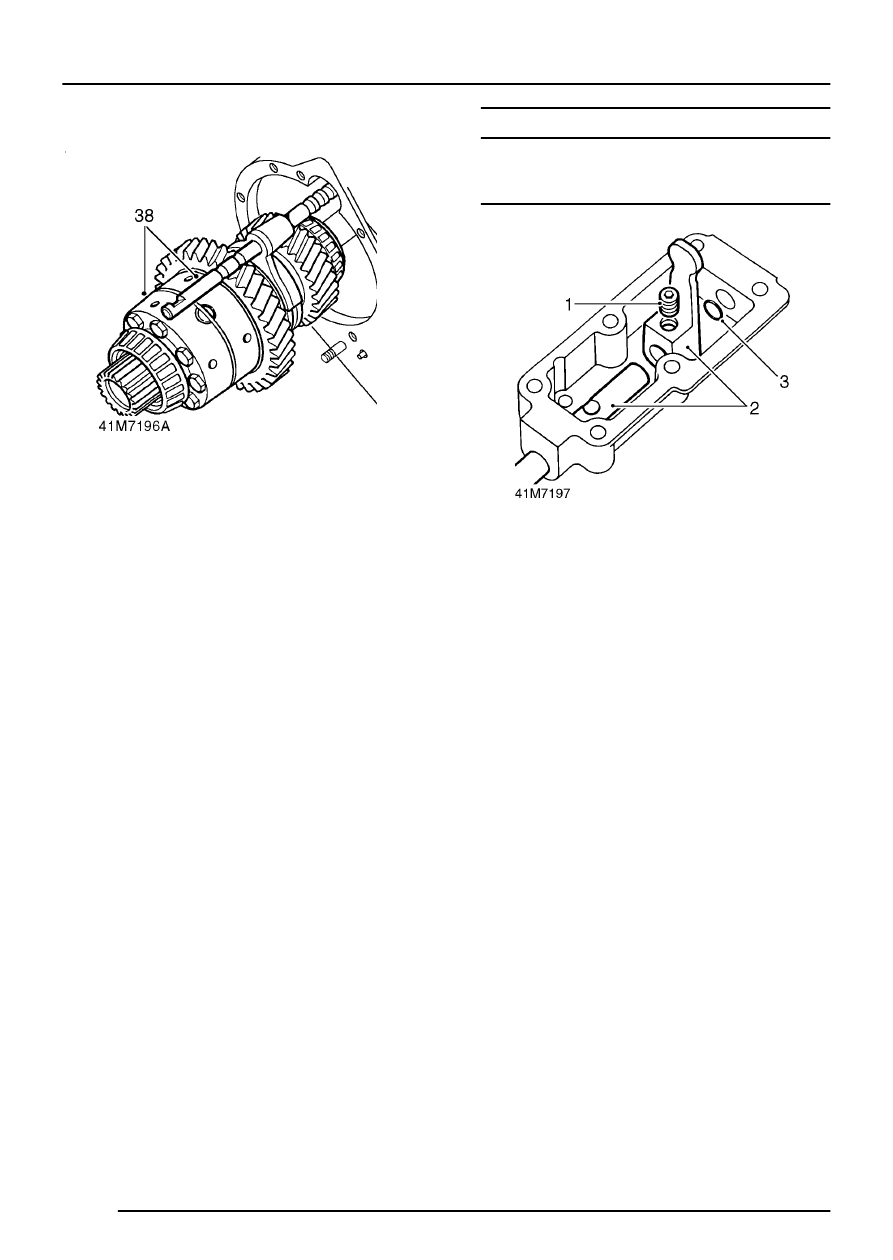

38. Withdraw differential assembly together with

high/low selector shaft and fork.

COMPONENT DISMANTLING

High/low cross shaft housing

1. Remove setscrew securing high/low selector

finger to cross shaft.

2. Withdraw cross shaft from housing, recover

high/low selector finger.

3. Remove and discard ’O’ ring.

15 General
