- COMPONENT LOCATION
FUEL SYSTEMCOMPONENT LOCATION
FUEL SYSTEM
1
DESCRIPTION AND OPERATION

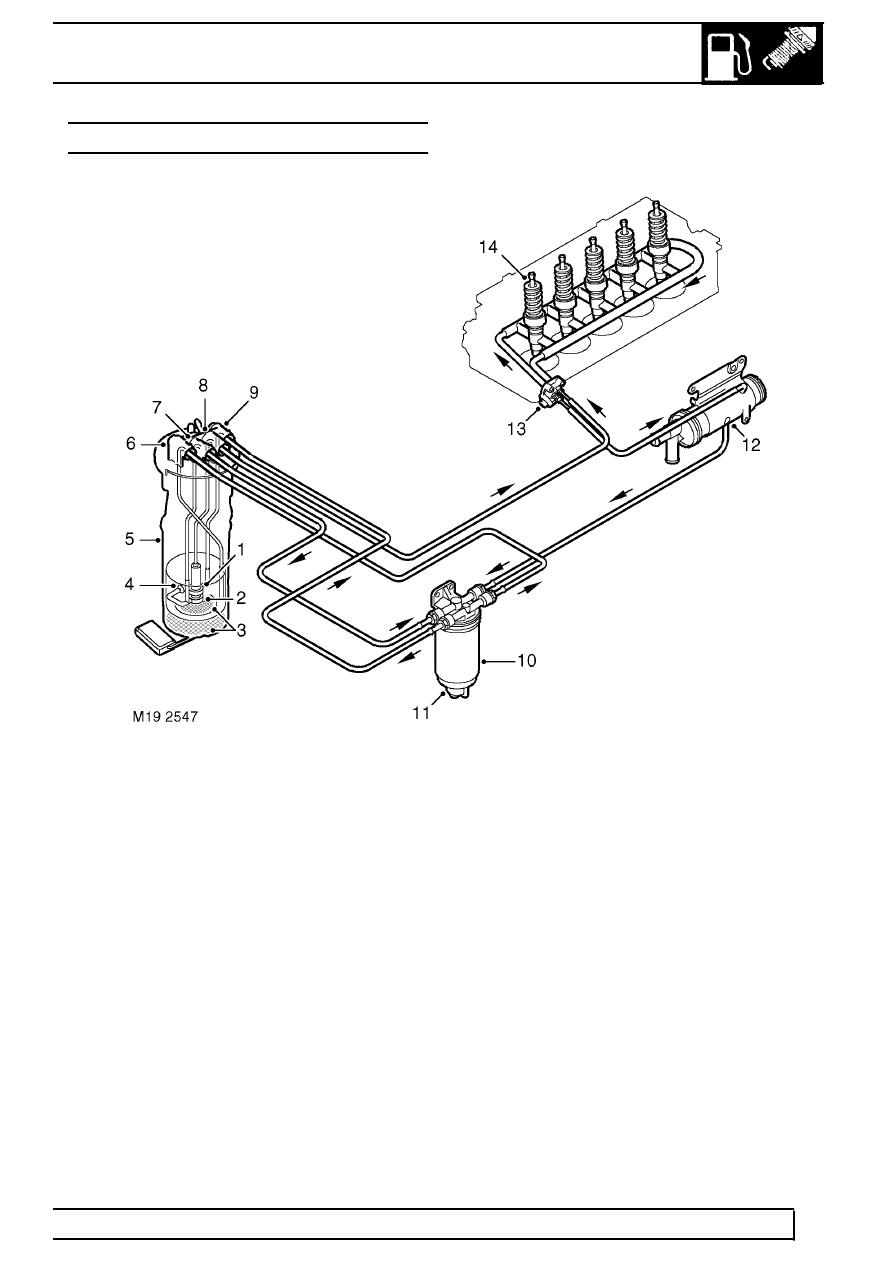

COMPONENT LOCATION
1. HP stage
2. LP stage
3. Filters
4. Jet pump
5. Fuel pump and fuel gauge sender unit
6. LP return connection
7. LP feed connection
8. HP feed connection
9. Air bleed connection
10. Fuel filter
11. Water sensor
12. Fuel cooler
13. Fuel pressure regulator
14. Electronic Unit Injectors
